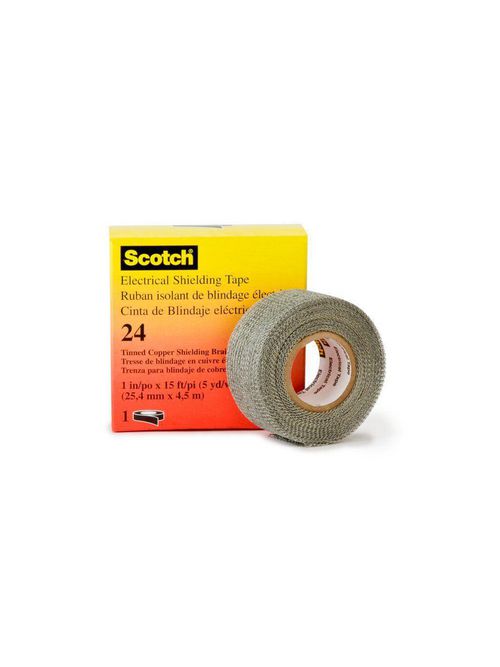

3M 24-1x15FT Shielding Tape
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$36.29/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 24-1x15FT
Codale Part # 50213

Features

  • Provides excellent adherence with rubber resin adhesive
  • Elongates easily for use in uneven surfaces
  • Suitable for indoor and outdoor applications
  • Made of copper
  • Withstands a wide temperature range of 32 to 221 °F (0 to 105 °C)
  • RoHS 2011/65/EU Compliant

Specifications

  • Adhesion to Steel: en-CA: NA - en-US: NA - fr-CA: NA
  • Adhesive Material: Rubber Resin
  • Adhesive Type: Rubber
  • Application: Electrical Maintenance
  • Backing (Carrier) Thickness (Imperial): 15.748 mil
  • Backing (Carrier) Thickness (Metric): 0.4 mm
  • Backing Material: Tinned Copper
  • Backing Thickness (Metric): 0.4 mm
  • Breaking Strength (Imperial): 22 lb/in
  • Color Family: Gray
  • Dielectric Strength (V/mil): Conductive
  • Elongation at Break: NA
  • Family: Scotch® Electrical Shielding Tape 24
  • High Temperature Rating: 220°F (105°C)
  • Insulated: No
  • Insulation: No
  • Low Temperature Rating: 32°F (0°C)
  • Material: All-Metal Open Weave
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 266 Degree Fahrenheit
  • Minimum Order Quantity: 10 Rolls
  • Operating Temperature Range (Celsius): 0 °C to 105 °C
  • Operating Temperature Range (Fahrenheit): 32 °F to 220 °F
  • Overall Length (Imperial): 15 ft
  • Overall Length (Metric): 4.6 m
  • Overall Width (Imperial): 1 in
  • Overall Width (Metric): 25.4 mm
  • Product Color: Silver
  • Product Markets: Power Distribution - Electrical Construction - Electrical MRO
  • Product Type: Grounding and Shielding Tape
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Rolls per Case: 50
  • Self-extinguishing: No
  • Self-sticking: No
  • Suitable for High Voltage: No
  • Tape Grade: Premium
  • Tape Type: Electrical Shielding
  • Total Thickness: 0.4 mm
  • UV Resistant: Yes
  • Vulcanizing: No

Overview

UPC 05400715041
Codale Part No. 50213
Material All-Metal Open Weave
Color Silver
Length 15 Linear Foot
Width 1 Inch
Thickness 16 mil
Item Long Description Scotch Tape 24 is a 16 mil thick, premium grade electrical tape for use with power cable insulations and high voltage splicing/terminating materials. The open weave, shielding tape withstands a wide temperature range of 32 to 221 F (0 to 105 C).
MDM Pkg GTiN 00054007150411
Length 15 LF
Size 1 in
Type Insulating and Splicing
Family Brand Name Scotch
Sub Brand Scotch
Width 1 in
Color Silver
Thickness 16 mil
Material All-Metal Open Weave
Product Type Grounding And Shielding Tape
Max Operating Temperature 266 degrees F
Overall Length 15 ft
Adhesive Type Rubber
Applications Electrical Maintenance
