3M 2510-1-1/2x36yd Varnished Cambric Tape
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 2510-1-1/2x36yd
Codale Part # 50156

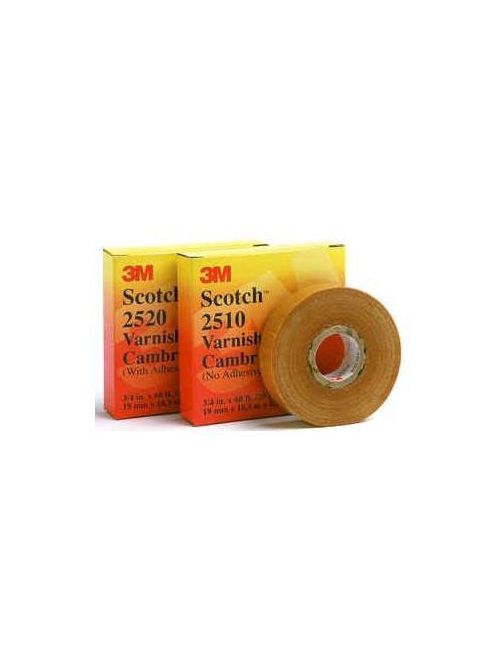

Scotch® Tape 2510 is a 7-mil thick, premium-grade varnished cambric tape that's suitable for insulating bus bars, motor leads and service drop connections. The electrical properties of the tape remain stable in a temperature range of 32 to 221 degrees F (0 to 105 degrees C).

Scotch® Tape 2510 has a straight-cut, woven cotton, cambric fabric backing that provides high tensile strength and ruggedness. This fabric is coated and oil-primed with yellow electrical insulating varnish. This moisture-resistant tape offers excellent dielectric strength with cut-through and puncture resistance. ASTM Approved and RoHS 2011/65/EU Compliant.

  • Straight cut woven cotton cambric fabric is infused with yellow varnish for electrical insulation
  • Provides excellent tensile strength
  • Tape measures 1-1/2 in x 36 yds x 7 mil
  • Withstands a temperature range of 32 to 221 degrees F (0 to 105 degrees C)
  • ASTM Approved and RoHS 2011/65/EU Compliant
  • 24 rolls/case, BULK


  • 3M ID: 80100220088
  • Adhesive Material: Non-Adhesive
  • Agency Approvals: ASTM D-1000, ASTM D-295, ASTM D-374
  • Applications: Electrical Maintenance
  • Backing Material: Cotton Cloth
  • Brand: Scotch®
  • Breaking Strength: 50 lb/in
  • Cable Tie Length: 282 mm
  • Case Quantity: 24 Rolls
  • Chemical Resistant: RoHS 2011/65/EU Compliant, Yes
  • Color: Yellow
  • Dielectric Strength: 800 V/mil
  • Dielectric Strength (V/mil): 800 V/mil
  • Family: Scotch® Varnished Cambric Tape 2510
  • Flammability Rating: UL 94 V-2
  • High Temperature Rating: 220°F (105°C)
  • Length: 36 Linear Yard
  • Length (Metric): 33 m
  • Material: Varnish Cambric Fabric
  • Maximum Bundle Diameter: 3 Inch
  • Maximum Bundle Diameter (metric): 76 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 220 Degree Fahrenheit
  • Operating Temperature (Celsius): Up to 105 Degree Celsius
  • Operating Temperature (Fahrenheit): Up to 220 °F
  • Operating Temperature Range (Celsius): 0 °C to 105 °C
  • Operating Temperature Range (Fahrenheit): 32 °F to 220 °F
  • Product Markets: Electrical Construction, Electrical MRO, Power Distribution
  • Product Type: Rubber and Splicing Tapes, Varnished Cambric Tape
  • RoHS 2011/65/EU Compliant: RoHS 2011/65/EU Compliant, Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Rolls per Carton: 1
  • Rolls per Case: 24
  • Self Sticking/Amalgamating: Sunlight Resistant
  • Shelf Life: 5 Year
  • Specifications: ASTM D-1000, ASTM D-295, ASTM D-374
  • Tape Grade: Premium
  • Tape Type: Varnished Cambric
  • Tensile Strength: 7150 psi
  • Tensile Strength (metric): 23 kg
  • Tensile Strength lb/in (N/100 mm): 50 (876)
  • Thickness: 7 mil
  • Thickness (Metric): 0.18 mm
  • Trademark: Scotch®
  • Units per bag: 500
  • Vulcanizing: Sunlight Resistant
  • Width: 1.5 Inch
  • Width (Metric): 38 mm


UPC 05400710703
Codale Part No. 50156
Material Varnish Cambric Fabric
Color Yellow
Length 36 Linear Yard
Width 1.5 Inch
Thickness 7 mil
Tensile Strength 7150 psi
Dielectric Strength 800 V/mil
Flammability Rating UL 94 V-2
Specifications ASTM D-1000, ASTM D-295, ASTM D-374
Item Long Description Varnished Cambric Tape 1 1/2" x 36 Yd
MDM Pkg GTiN 00054007107033
Width 1.5 in
Size 1-1/2x36yd
Color Yellow
Thickness 0.18 mm
Applications General Purpose
Family Brand Name 3M
Tensile Strength 20 lbs./in
Sub Brand Scotch
Length 36 LY
Material Varnish Cambric Fabric
Product Type Rubber And Splicing Tapes, Varnished Cambric Tape
Max Operating Temperature 220 degrees F
