3M 50-2X100 UN 24 Roll/Case 2x100 Foot Bulk Corrosion Protection Tape
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Already a Customer? Log in to view your pricing
Manufacturer 3MUTIL
Mfg Catalog # 50-UNPRINTED-2x100FT-BULK
Codale Part # 50231

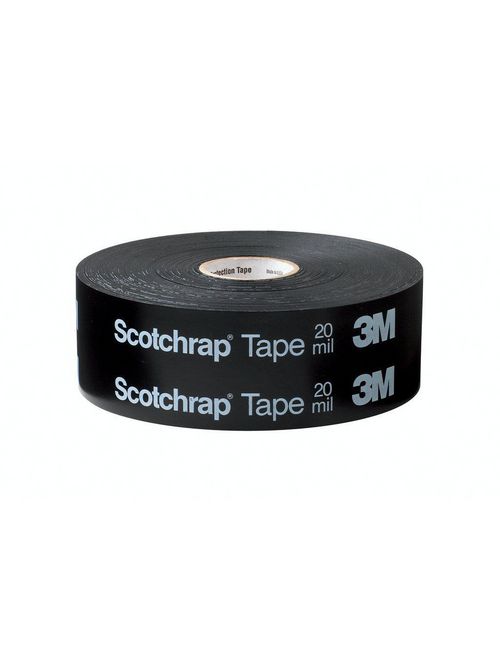

3M™ Scotchrap™ Tape 50 is a premium-grade, 10-mil thick, all-weather, PVC backing tape. It withstands temperatures of -55 to 176 degrees F (-48 to 80 degrees C). This high-tack adhesive tape offers resistance to corrosion, impact, abrasion and puncture, making it suitable for use on metal piping systems, conduits and fittings both above and below ground.

3M™ Scotchrap™ Tape 50 Corrosion Protection Tape ensures excellent tacking and high conformability with a pressure-sensitive rubber adhesive. The flexible PVC backing offers good mechanical strength and electrical insulation properties. It is highly resistant to UV rays, corrosive salt water, soil acids, alkalis, salts, chemicals and varying weather conditions. It works on straight pipes, conduits and on the field joints present on mill-coated pipes. UL Listed and RoHS 2011/65/EU Compliant.

  • Protects metal piping systems against corrosion
  • Pressure-sensitive, rubber adhesive ensures excellent tacking and provides optimized adherence
  • Tape measures 2 in x 100 ft x 10 mil
  • Comes in durable black PVC
  • Withstands a wide temperature range of -55 to 176 degrees F (-48 to 80 degrees C)
  • Unprinted
  • RoHS 2011/65/EU Compliant
  • 24 rolls/case, BULK


  • 3M ID: 80008006639
  • Adhesion to Steel: 2,2 N/cm
  • Adhesive Material: Pressure Sensitive Rubber Adhesive
  • Adhesive Type: Rubber
  • Applications: Electrical Maintenance
  • Backing Material: Vinyl
  • Backing Thickness (metric): 0.25 mm
  • Brand: 3M
  • Breaking Strength: 20 lb/in
  • Chemical Resistant: RoHS 2011/65/EU Compliant, Yes
  • Color: Black
  • Electrolytic Corrosion Factor: 0.9
  • Elongation at Break: 200%
  • Flame Retardant: RoHS 2011/65/EU Compliant
  • High Temperature Rating: 176°F (80°C)
  • Installation Temperature Range: 10–150°F (-12–65°C)
  • Length: 100 Linear Foot
  • Length (Metric): 30.5 m
  • Low Temperature Rating: 32°F (0°C)
  • Material: PVC
  • Maximum Operating Temperature (Celsius): 80 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 176 Degree Fahrenheit
  • National Stock Number: 5970010241691, 5970016098789
  • Operating Temperature Range (Celsius): -48 °C to 80 °C
  • Operating Temperature Range (Fahrenheit): -55 °F to 176° F
  • Performance Level: Professional Grade
  • Printed Tape: No
  • Product Markets: Electrical Construction, Electrical MRO, Power Distribution
  • Product Type: Corrosion Protection Tapes
  • RoHS 2011/65/EU Compliant: RoHS 2011/65/EU Compliant, Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Rolls per Carton: 1
  • Rolls per Case: 24
  • Service Temperature Range: -55–176°F (-48–80°C)
  • Shelf Life: 5 Year
  • Specifications: VDE 0340-TEIL1
  • Tape Color: Black
  • Tape Grade: Premium
  • Tape Type: Corrosion Protection
  • Tape Width (metric): 51 mm
  • Thickness: 10 mil
  • Thickness (Metric): 0.254 mm
  • Total Thickness: 0.25 mm
  • Trademark: 3M™
  • UV Resistant: RoHS 2011/65/EU Compliant, Yes
  • Width: 50 Inch
  • Width (Metric): 50 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.


UPC 05400710638
Codale Part No. 50231
Material PVC
Color Black
Length 100 Linear Foot
Width 50 Inch
Thickness 10 mil
Adhesive Material Rubber
Specifications VDE 0340-TEIL1
Item Long Description Corrosion Protection Tape (bulk) 2"x100'
Length 100 ft
Width 2 in
Color Black
Type All-Weather, Unprinted
Thickness 10 mil
Backing Material Vinyl
Applications For Commercial Construction, Industrial Construction, Irrigation, Maintenance and Repair Operations, Mining, Residential Construction, Solar, Utility, Wind Power, Electrical Maintenance
Temperature Rating -48 to 80 C
Family Brand Name 3M
Standard Packaging Qty 24 Roll/Case
Sub Brand Scotchrap
Material PVC,Polyvinyl Chloride
Product Type Corrosion Protection Tapes
Performance Level Professional Grade
Max Operating Temperature 176 degrees F
