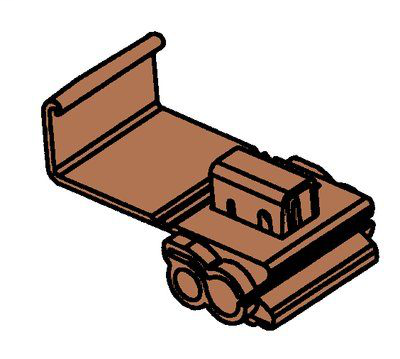

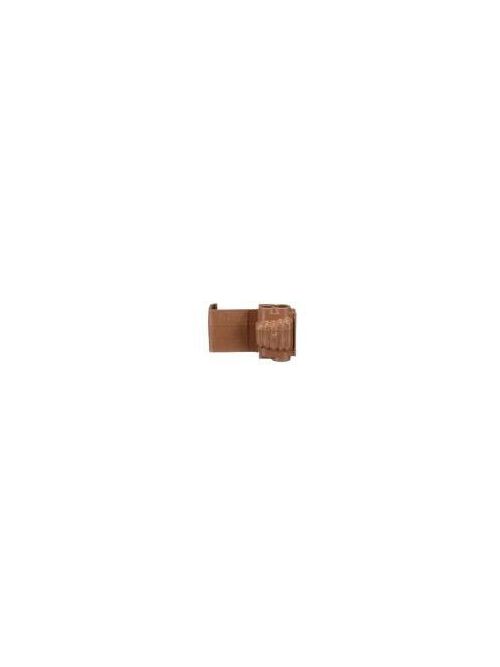

3M 567-BOX 100/Box Insulation Displacement Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.65/ea
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 567-BOX
Codale Part # 50194

Overview

Electrically connects a (tap) wire end to a through (run) wire and insulates the connection. Flame retardant. Self-stripping. Used for tap splicing. Dual element connection. Maximum insulation O.D.diameter of 0.145 inches (3,68 mm) Tap, 0.190 inches (4,82 mm) Run and a operating temperature of 221(deg)F (105(deg)C). The suggested application tool for this connector is the E-9BM Crimping Tool.

Specifications

  • Connection Type: Run and Tap
  • Color: Brown
  • Flame Retardant: Yes
  • Conductor Sizes: 18 - 14 AWG (Tap), 12 - 10 AWG (Run)
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Agency Approvals: UL and CSA
  • Trademark: Scotchlok
  • Family: IDC for Electrical Applications
  • Maximum Recommended Voltage Rating: 600 V
  • Minimum Wire Gauge: 18 AWG
  • Packaging: Box
  • Product Family: IDC for Electrical Applications
  • Maximum Wire Gauge: 14 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Connector Style: Insulation Displacement
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • RoHS 2011/65/EU Compliant: Yes

Documents

Overview

UPC 05400714887
Codale Part No. 50194
Material Insulator: FR Polypropylene, U-Contact: Tin-plated brass
Color Brown
Conductor / Wire Size 18 - 14 AWG (Tap), 12 - 10 AWG (Run)
Connection Type Run and Tap
Item Long Description Self-strippingFlame retardantMoisture resistantConnects and insulates in one stepDesigned for use with the 3M Scotchlok Crimping Tool, E-9BM
Color Brown
Type Insulation Displacement
Conductor Size 10 AWG
Wire Size 18 - 14 AWG (Tap) 12 - 10 AWG (Run)
Cable Size 18 - 14 AWG Tap, 12 - 10 AWG Run
Connection Type Run And Tap
Temperature Rating 221 F
Family Brand Name 3M
Flame Retardant Yes
Sub Brand Scotchlok
Voltage 600 Volt
