3M 82-A1 Inline Resin Splicing Kits
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$42.79/ea
ea
Adding...
Order in multiples of 10 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 82-A1
Codale Part # 50238

Overview

Use the 3M Scotchcast Inline Resin Splice Kits 82-A Series to insulate and seal single conductor, unshielded cable splices through 5 kV and multiple conductor cables through 1 kV.

Number of Conductors:

· 1 for 5 kV

· Multiple for 1 kV

Specifications

  • RoHS 2011/65/EU Compliant: Yes
  • Product Type: Splice
  • Shielding Type: Single Conductor Portable Cable, Non-shielded, Multiple Conductor Portable Cable
  • Splice Type: Inline
  • Product Technology: Resin
  • Voltage: 1 kV, 5 kV
  • Product Series: 82-A Series
  • Trademark: Scotchcast
  • Insulation O.D. Range: 0.406 - 0.625 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Conductor Sizes for 5 kV: 8 AWG, 4 AWG, 10 AWG, 12 AWG, 16 AWG, 2 AWG, 18 AWG, 14 AWG

Documents

Overview

UPC 05400725024
Codale Part No. 50238
Product Long Description The 82-A series is UL Listed 486D, File Number E102356. Connector is not included, order separately. Each kit makes one splice.

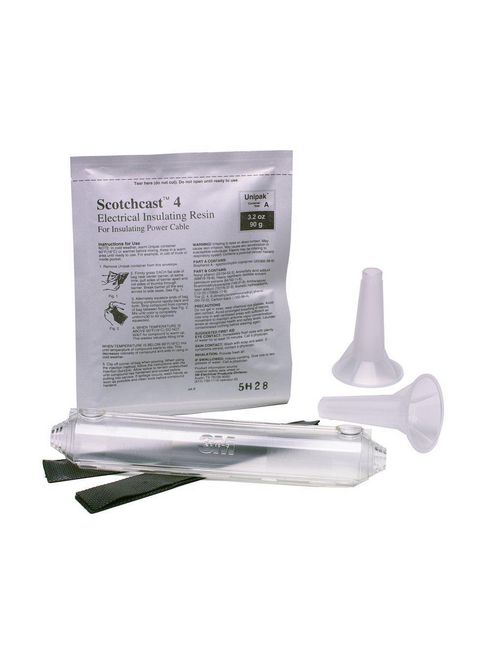

Item Long Description UL Listed for direct burial and submerged applications up to 600 volts and 90CRated to 5kV for inline splices on unshielded, synthetic insulated cablesRated to 1 kV for multiple conductor cablesUnshielded, synthetic insulated cablesEach kit contains one mold body, two pouring spouts, three strips of Scotch Rubber Splicing Tape 23 and one pack of 3M Scotchcast Electrical Insulating Resin 4
MDM Pkg GTiN 00054007250241
Voltage 1 kV
Type Inline, Cast Resin
Conductor Size 1.5 - 4 mm
Family Brand Name 3M
Sub Brand Scotchcast
