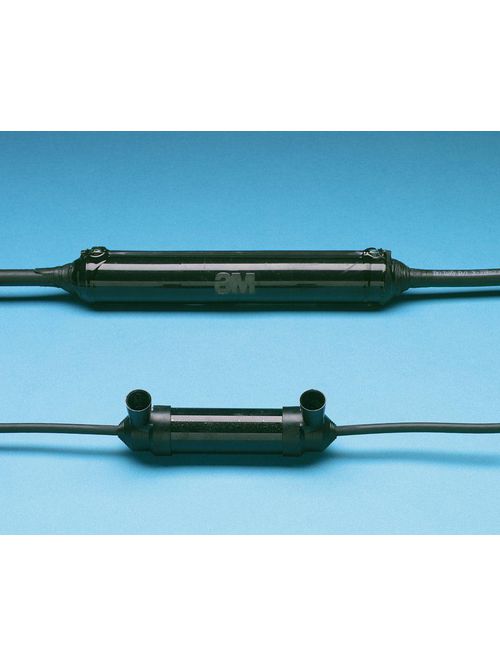

3M 82-A Inline Resin Splicing Kits
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$49.79/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 82-A
Codale Part # 50237

Overview

Use the 3M Scotchcast Inline Resin Splice Kits 82-A Series to insulate and seal single conductor, unshielded cable splices through 5 kV and multiple conductor cables through 1 kV.

Number of Conductors:

· 1 for 5 kV

· Multiple for 1 kV

Specifications

  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Conductor Sizes for 5 kV: 8 AWG, 4 AWG, 10 AWG, 2 AWG
  • Product Technology: Resin
  • Shielding Type: Single Conductor Portable Cable, Non-shielded, Multiple Conductor Portable Cable
  • Splice Type: Inline
  • Insulation O.D. Range: 0.406 - 0.750 Inch
  • RoHS 2011/65/EU Compliant: Yes
  • Product Series: 82-A Series
  • Voltage: 1 kV, 5 kV
  • Trademark: Scotchcast
  • Product Type: Splice

Documents

Overview

UPC 05400725016
Codale Part No. 50237
Product Long Description The 82-A series is UL Listed 486D, File Number E102356. Connector is not included, order separately. Each kit makes one splice.
Item Long Description The 82-A series is UL Listed 486D, File Number E102356. Connector is not included, order separately. Each kit makes one splice.
Voltage 1 kV
Family Brand Name 3M
Color Black
Type Inline Resin
Material Epoxy
Conductor Size 10-2 AWG
Applications For Weather-Exposed or Direct Burial Locations
Sub Brand Scotchcast
