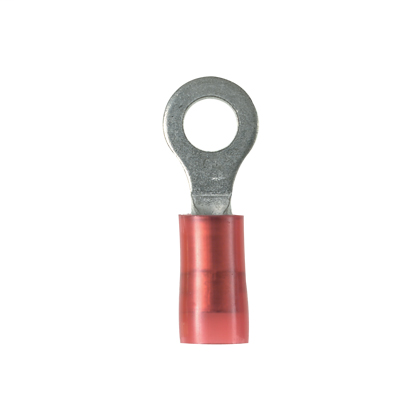

PANDUIT PN18-10R-C RING TERMINAL

Manufacturer	Panduit
Mfg Catalog #	PN18-10R-C
Codale Part #	114994

Overview

UPC	07498380006
Product Description	RING TERMINAL, NYLON INSULATED, 22 - 18AWG
Catalog Description	Ring Terminal, 22 18 AWG, #10 stud size, nylon insulated, standard package.
Codale Part No.	114994
Product Long Description	Ring tongue design assures a secure connection in high vibration applications. Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486A/B. Standard Package.
Sub Brand	Pan-Term
Barrel Type	Insulation Grip Sleeve
Color Code	Red
Flammability Rating	UL 94 V-2/UL 94 HB
Packaging Type	Bottle
Product Short Description	Ring Terminal, 22 18 AWG, #10 stud size, nylon insulated, standard package.
Item Long Description	Ring tongue design assures a secure connection in high vibration applications. Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486A/B. Standard Package.
MDM Pkg GTiN	00074983800063
Finish	Tin Plated
Width	0.31 in
Size	NA
Color	Red
Type	Ring Terminal
Barrel Type	Standard
Material	Copper
Country of Origin	MX
Wire Size	22-18 AWG
Temperature Rating	221 F
Pkg Qty	100
Family Brand Name	Panduit
Tc Connection	Standard
Max Operating Temperature	221 degrees F
Overall Length	0.87 in
Barrel Length	0.44 in
Color Coding	Red
Enclosure	Ring shape
Sub Brand	Pan-Term
Voltage	null
Stud Size	#10
Conductor Size	22-18 AWG
Insulation Material	Nylon
MDM PRODUCT KEYWORD	MNG18-10R/LX, RA18-10, RS1810, RS1810-100, R22-10N, R6A-10, R18-10N, PNF18-10R-C, TN18-10, 11318
