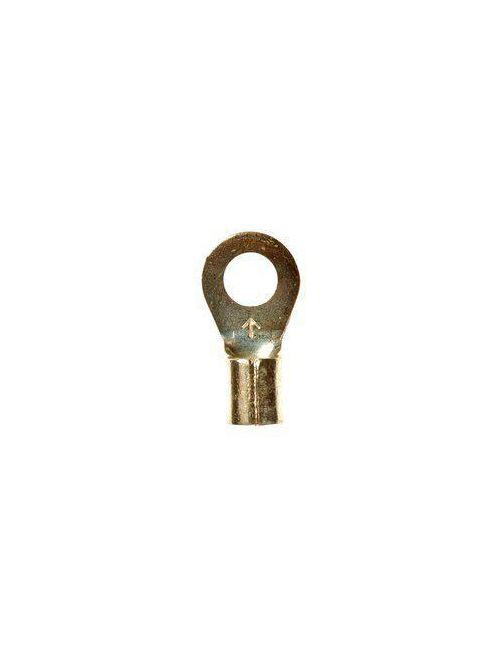

3M M10-10RX 50/Bottle Non-Insulated Ring
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.70/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M10-10RX
Codale Part # 50103

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size #10
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • Connection Width (Imperial): 0.19 in
  • Connection Width (Metric): 4.826 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 24 AWG
  • Maximum Operating Temperature (Celsius): 175 Degree Celsius
  • Minimum Conductor Size: 26 AWG
  • Overall Length (Imperial): 0.73 in
  • Overall Length (Metric): 18.54 mm
  • Overall Width (Imperial): 0.38 in
  • Overall Width (Metric): 9.65 mm
  • Product Color: Metal
  • Terminal Type: Ring

Overview

UPC 05112858682
Codale Part No. 50103
Material Plastic
Color Metal
Length 0.73 Inch
Width 0.38 Inch
Thickness 0.04 Inch
Conductor / Wire Size 12 - 10 AWG
Terminal Type Ring
Item Long Description 3M Scotchlok Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
MDM Pkg GTiN 00051128586822
Length 0.73 in
Width 0.38 in
Color Metal
Type Ring
Thickness 0.04 in
Barrel Type Brazed
Material Plastic
Terminal Style Standard
Terminal Type Ring
Product Type Connector
Conductor Size 10 AWG
Family Brand Name Scotchlok
Insulation Material Non-Insulated
Terminal Size 12 - 10 AWG
Max Operating Temperature 175 C
Sub Brand Scotchlok
Overall Length 0.73 in
