3M MNG10-10RX 12-10 INS RING TERM
$1.32/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG10-10RX
Codale Part # 50996

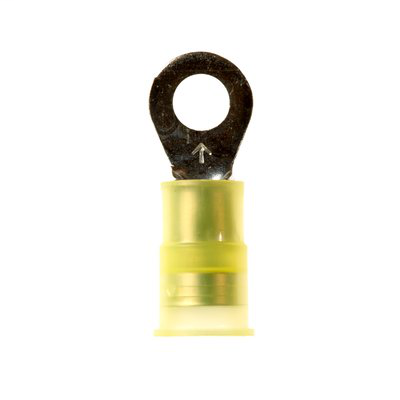

3M MNG10-10RX 12-10 INS RING TERM

Overview

UPC 05112858686
Catalog Description 3M Scotchlok Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Codale Part No. 50996
Type Standard
Material Plastic
Color Yellow
Length 1.03 Inch
Width 0.38 Inch
Thickness 0.04 Inch
Conductor / Wire Size 12 - 10 AWG
Terminal Type Ring
MDM Item Long Description The safest and most
MDM Pkg GTiN 00051128586860
Length 1.03 in
Width 0.38 in
Color Yellow
Type Ring
Thickness 0.04 in
Barrel Type Butted
Material Plastic
Terminal Style Standard
Terminal Type Ring
Conductor Size 10 AWG
Family Brand Name 3M
Insulation Material Insulation Grip,Nylo
Terminal Size 12 - 10 AWG
Max Operating Temperature 221 degrees F
Sub Brand Scotchlok
MDM PRODUCT KEYWORD PN10-10R-L, R6C-10, TN10-10, R12-10N, RS1010, RS1010-100, RC10-10, R10-10N, 11360
