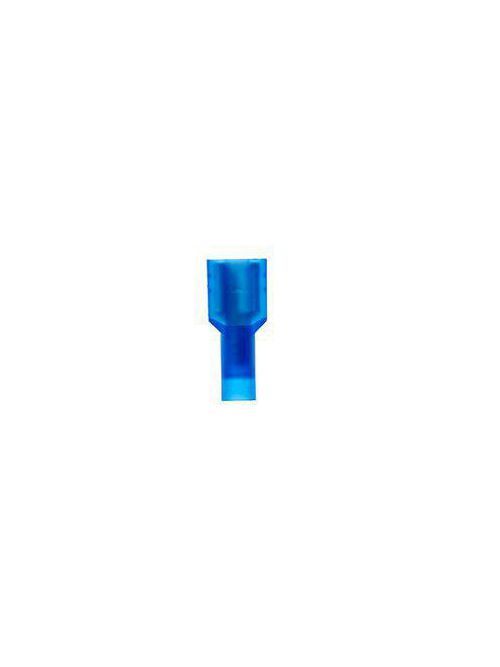

3M MNU14-250DFIX 100/Bottle Nylon Insulated Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.07/ea
In Stock | 1100 available at 4 locations
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNU14-250DFIX
Codale Part # 50275

Features

  • Blue nylon-insulated, butted-seam barrel offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 16 to 14 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.080 Inch
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Butted
  • Color Family: Blue
  • Conductor Size: 16 - 14 AWG
  • Connection Type: Wire
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Connector / Connector Tool: Connector
  • Connector Style: Insulation Displacement
  • CSA File Number: LR22190
  • Diameter (D): 0.23 Inch
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Flame Retardant: No
  • Grease Filling Against Corrosion: No
  • Insulation Color: Blue
  • Insulation Material: Nylon
  • Interrupt Free Shifting: No
  • Material: ETP Copper
  • Mates with Female Width: 0.250 Inch
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Maximum Conductor Size: 14 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.145 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Conductor Size: 16 AWG
  • Minimum Order Quantity: 100
  • Minimum Wire Gauge: 16 AWG
  • Overall Diameter (Imperial): 0.23 in
  • Overall Length (Imperial): 0.87 in
  • Overall Length (Metric): 22.09 mm
  • Overall Width (Imperial): 0.37 in
  • Overall Width (Metric): 9.4 mm
  • Product Color: Blue
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tab Width: 0.187
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard
  • UL File Number: E70512

Overview

UPC 05112858777
Codale Part No. 50275
Material ETP Copper
Color Blue
Length 0.87 Inch
Width 0.37 Inch
Thickness 0.032 Inch
Conductor / Wire Size 16 - 14 AWG
Diameter 0.23 Inch
Connection Type Wire
Terminal Type Disconnect
Item Long Description 3M Scotchlok Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
MDM Pkg GTiN 00051128587775
Length 0.87 in
Width 0.37 in
Color Blue
Type Disconnect
Diameter 0.23 in
Thickness 0.032 in
Barrel Type Butted
Material ETP Copper
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 14 AWG
Connection Type Wire
Family Brand Name Scotchlok
Insulation Material Nylon
Terminal Size 16 - 14 AWG
Max Operating Temperature 221 degrees F
Barrel Length 0.25 in
Sub Brand Scotchlok
Overall Length 0.87 in
