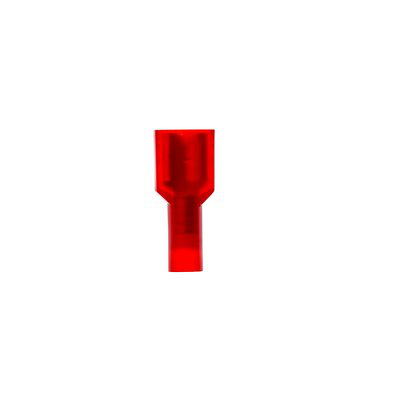

3M MNU18-250DFIX 22-18 FEMALE DISCONNECT VINYL INSULATED 100/BOTTLE
$1.07/ea
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNU18-250DFIX
Codale Part # 50274
3M MNU18-250DFIX 22-18 FEMALE DISCONNECT VINYL INSULATED 100/BOTTLE

Overview

UPC 05112858776
Product Description FEMALE DISCONNECT, NYLON INSULATED
Catalog Description 3M Scotchlok Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
Codale Part No. 50274
Material ETP Copper
Color Red
Length 0.87 Inch
Width 0.37 Inch
Thickness 0.032 Inch
Conductor / Wire Size 22 - 18 AWG
Diameter 0.23 Inch
Connection Type Wire
Terminal Type Disconnect
MDM Item Long Description Corrosion resistance
MDM Pkg GTiN 00051128587768
Length 0.87 in
Width 0.37 in
Color Red
Type Fully Insulated, Flat
Diameter 0.23 in
Thickness 0.032 in
Barrel Type Butted
Material Brass
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 22-18 AWG
Tab Size 6.3 x 0.8 mm
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
MDM PRODUCT KEYWORD IF22-250-3N, MNU18-250DFIK, 10-151F, 83-9771, FQN18F25X03D, 10411, F18-250FN
