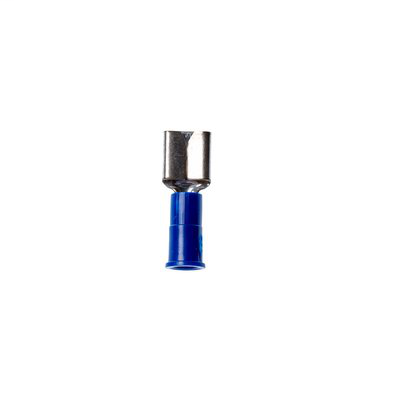

3M MVU14-250DFX 16-14 FEMALE DISCONNECT VINYL INSULATED 100/BOTTLE
$0.90/ea
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU14-250DFX
Codale Part # 50969
3M MVU14-250DFX 16-14 FEMALE DISCONNECT VINYL INSULATED 100/BOTTLE

Overview

UPC 05112858671
Catalog Description 3M Scotchlok Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
Codale Part No. 50969
Material ETP Copper
Color Blue
Length 0.87 Inch
Width 0.37 Inch
Thickness 0.032 Inch
Conductor / Wire Size 16 - 14 AWG
Diameter 0.23 Inch
Connection Type Wire
Terminal Type Disconnect
MDM Item Long Description 3M Scotchlok C
MDM Pkg GTiN 00051128586716
Length 0.87 in
Finish Tin Plated
Width 0.37 in
Color Blue
Type Standard
Thickness 0.032 in
Barrel Type Butted Seam
Material ETP Copper
Terminal Style Standard
Terminal Type Disconnect
Conductor Size 16-14 AWG
Applications For Quick and Easy Disconnect of Wires, Wireless Network, Infrastructure Accessories
Tab Size 1/4 in W x 0.032 in
Temperature Rating 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Voltage null
Diameter 0.23 in
Max Operating Temperature 221 degrees F
Overall Length 0.87 in
MDM PRODUCT KEYWORD MVU14-250DFK, MVI14-250DFK, 14RB-250F, RB257, DV14-250B-C, DV14-205B-C, FR4B250, 45110-B10, 10-143F, QP14F25X03D, DVF14-250-C, 83-9581, 10324, DVF14-205-C
