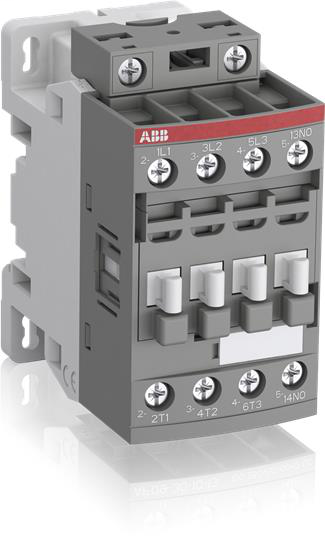

Thomas & Betts AF09-30-10-13 100 - 250 Volt 50/60 Hz DC Contactor

Manufacturer: ABB Inc. | Catalog # AF09-30-10-13 | Codale Part # 4112047

$101.61/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
3 pole, 25 amp, non-reversing across the line contactor with 100-250V AC/DC coil and 1 NO contacts

Technical Information

Applications
For Controlling 3 Phase Motors, Non-Inductive or Slightly Inductive Loads, Isolation, Capacitor Switching and Lighting
Blade Dimensions
45 mm L x 86 mm W x 77 mm H
Coil Voltage
100 - 250 VAC/VDC
Contact Configuration
1 NO Auxiliary, 3 NO Main
Mounting Type
Front and Side, DIN Rail
Number of Poles
3 Pole
Power Rating
2.2 kW at 220/230/240 V, 4 kW at 380/400/415/440 V, 5.5 kW at 500/690 V
Size
45x86x77mm
Standard
60947-4-1,CSA C22.2 N14,EN 60947-1,IEC 60947-1,UL 508
Temperature Rating
-25 to 55 C
Terminal Type
Screw Terminals
Type
Non-Reversing

Manufacturer Information

Family Brand Name
Thomas & Betts

General Product Info

Environmental Conditions
-60 to 80 C
Product UPC
80432553825
Application
Mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads
Brand Name
ABB
Codale Part No.
4112047
Product Long Description
3 pole, 25 amp, non-reversing across the line contactor with 100-250V AC/DC coil and 1 NO contacts
Size
45x86x77mm
Type
Contactors
