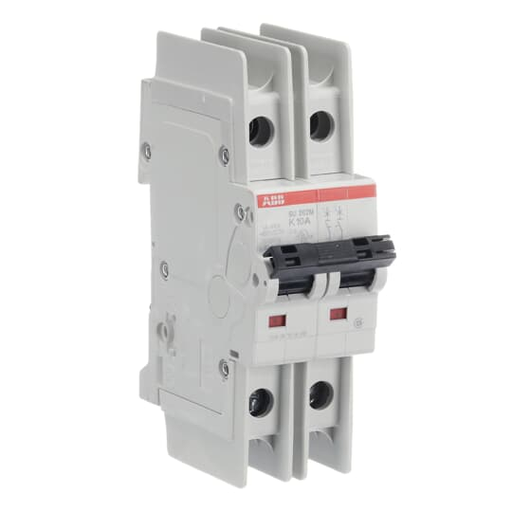

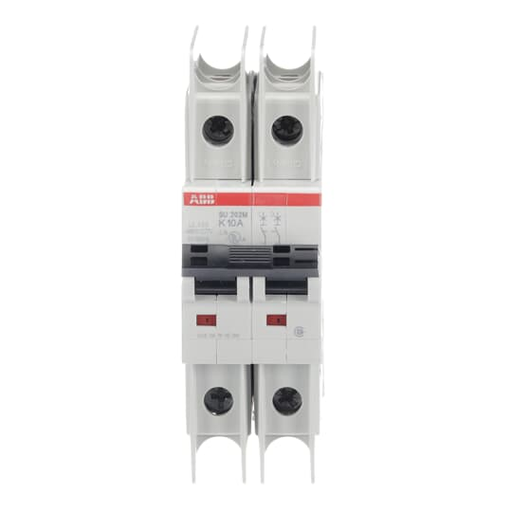

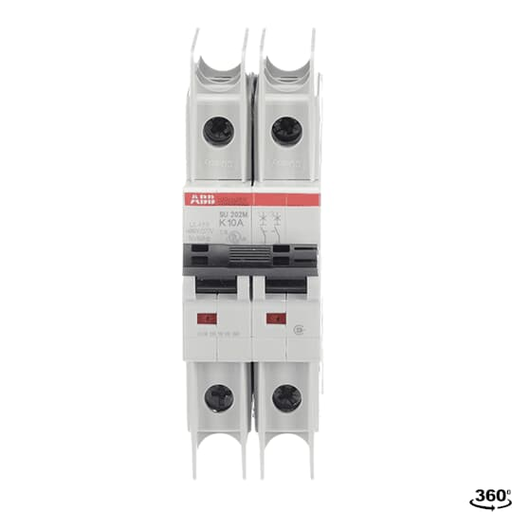

ABB SU202M-K10 UL489 MCB 2P K 10A 4

Manufacturer: ABB Inc. | Catalog # SU202M-K10 | Codale Part # 4147233
$96.95/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet CAD Drawing #1
Miniature Circuit Breaker, Rated Current 10 Amps, 2 Pole, Interrupt Rating 10 kA, Trip Curve K, Voltage up to 277/Y480 VAC, 48/96 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 489, CSA 22.2 No. 5

Technical Information

Amperage
10 Amp
Applications
Branch Circuit Protection
Conductor Size
18-4 AWG/18-8 AWG
Current
10 Amp
Interrupt Rating
10 kAIC
Mounting Type
35 mm DIN Rail
Number of Poles
2 Pole
Operating Temperature
55 degrees C
Power Rating
2.1 W
Standard
CSA 22.2 No. 5,EN 60947-2,IEC,UL 489
Temperature Rating
-25 to 55 degrees C
Terminal Type
Screw Terminals
Trip Type
K-Curve
Type
High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Voltage
277/480 Volt

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
888614423374
Environmental Conditions
25 C at 95 - 100% Relative Humidity, 55 C at 90 - 96% Relative Humidity, 3 Pollution Degree
Product UPC
88861442337
Weight
0.5400 lb

Dimensions

Height
111 mm
Length
69 mm
Width
35 mm
