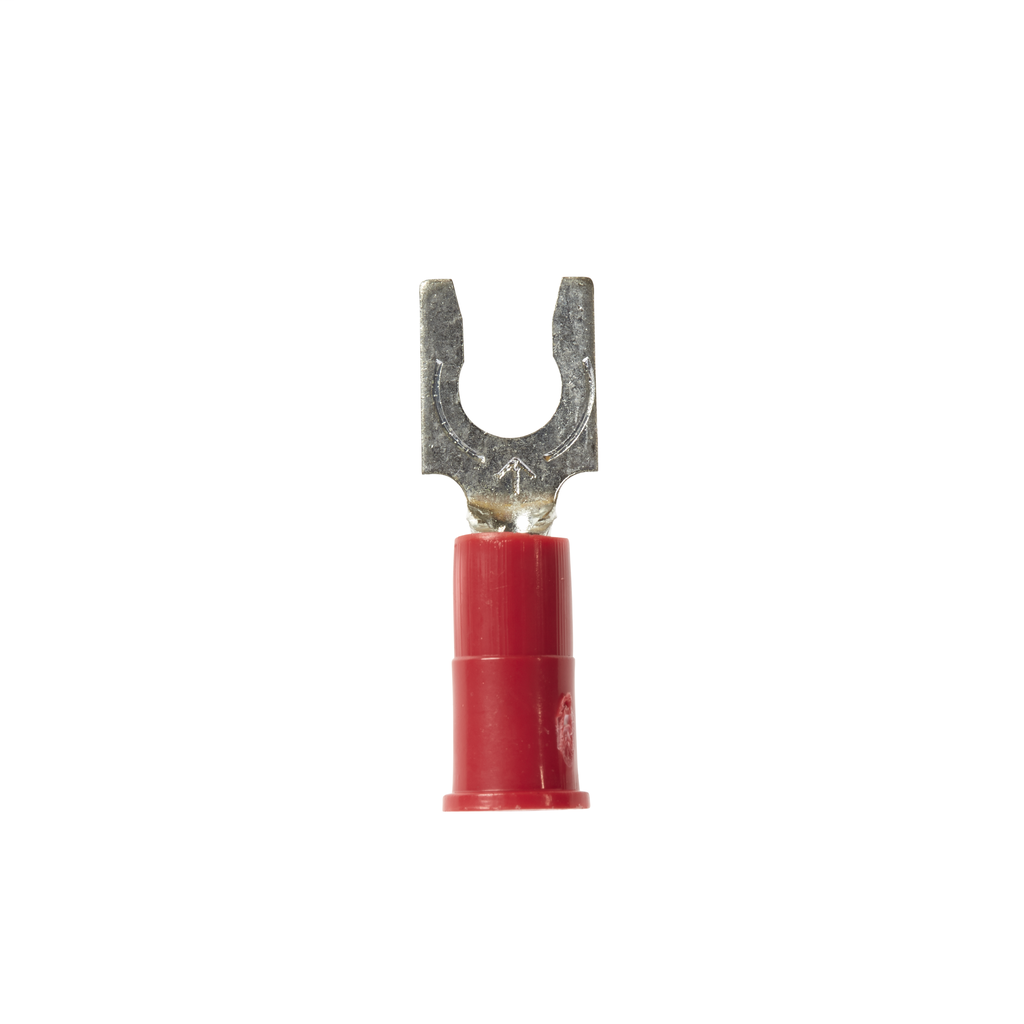

3M MVU18-8FLK Vinyl Insulated Butted Seam Locking Fork Terminal

Manufacturer: 3M | Catalog # MVU18-8FLK | Codale Part # 4196234
$0.32/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet PDF Spec Sheet Product Catalog Page

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
18 AWG
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
221 degrees F
Stud Size
8
Terminal Size
22 - 18 AWG
Terminal Style
Locking
Terminal Type
Fork
Type
Fork

Manufacturer Information

Family Brand Name
Scotchlok
Sub Brand
Scotchlok

General Product Info

Product UPC
05400701361

Dimensions

Length
0.88 Inch
Overall Length
0.88 in
Thickness
0.03 in
Width
0.3 in
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Red vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Stud size #8
  • Accommodates wire sizes 22 to 18 AWG
  • Electrolytic copper construction offers good conductivity
  • 1000/case
