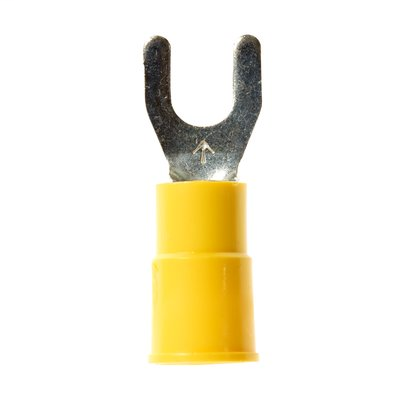

3M MVU10-10FLK Vinyl Insulated Butted Seam Locking Fork Terminal

Manufacturer: 3M | Catalog # MVU10-10FLK | Codale Part # 4196238

$0.50/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
This terminal has a wire range of 12-10 AWG and a stud size of 10. It comes in case quantities of 500 per case.

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
10 AWG
Insulation Material
Vinyl
Material
Plastic
Max Operating Temperature
221 degrees F
Stud Size
10
Terminal Size
12 - 10 AWG
Terminal Style
Locking
Terminal Type
Fork
Type
Fork

Manufacturer Information

Family Brand Name
Scotchlok
Sub Brand
Scotchlok

General Product Info

Color
Yellow
Product UPC
05400702116

Dimensions

Length
1.03 Inch
Overall Length
1.03 in
Thickness
0.04 in
Width
0.32 in
Codale Part No.
4196238
Length
1.03 Inch
Product Long Description
This terminal has a wire range of 12-10 AWG and a stud size of 10. It comes in case quantities of 500 per case.
Terminal Type
Fork
Thickness
0.04 Inch
Width
0.32 Inch
  • Stud size #10
  • Spring-like tongue firmly fits around the stud
  • Electrolytic copper construction offers good conductivity
  • Yellow vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 500/case
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Accommodates wire sizes 12 to 10 AWG
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
