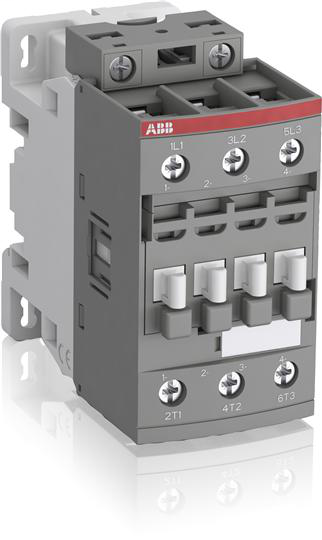

Thomas & Betts AF26-30-00-13 100 - 250 Volt 50/60 Hz DC Contactor

Manufacturer: ABB Thomas & Betts | Catalog # AF26-30-00-13 | Codale Part # 4209874
$130.99/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Primary Spec Sheet Product Brochure Product Catalog Page
3 pole, 45 amp, non-reversing across the line contactor with 100-250V AC/DC coil and no auxiliary contacts

Technical Information

Amperage
45 Amp
Applications
For Controlling 3-Phase Motors, Non-Inductive or Slightly Inductive Loads
Blade Dimensions
45 mm W x 86 mm D x 86 mm H
Coil Voltage
100 - 250 VAC/VDC
Contact Configuration
3 NO Main
Mounting Type
Front and Side
Number of Poles
3 Pole
Power Rating
6.5 kW at 220/230/240 V, 11 kW at 380/400/415 V, 15 kW at 440/500/690 V
Size
45x86x86mm
Standard
60947-4-1,CSA C22.2 N14,EN 60947-1,IEC 60947-1,UL 508
Temperature Rating
-25 to 60 C
Terminal Type
Screw Terminals
Type
Non-Reversing
Voltage
690 Volt

Manufacturer Information

Family Brand Name
Thomas & Betts

General Product Info

Environmental Conditions
-60 to 80 C Storage Temperature
Product UPC
80432553872
Application
Mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads
Brand Name
ABB
Codale Part No.
4209874
Product Long Description
3 pole, 45 amp, non-reversing across the line contactor with 100-250V AC/DC coil and no auxiliary contacts
Size
45x86x86mm
Type
Contactors
