Lithonia JEBL-30L-40K-80CRI-WH LED High Bay Light Fixture, 218W, 31,588 Lumens, 4000K, 120-277V

Manufacturer: Lithonia Lighting | Catalog # JEBL30L40K80CRIWH | Codale Part # 4220490
$552.04/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The JEBL LED high bay by Lithonia Lighting makes maintaining your lighting more affordable with a unique round design of the die-cast aluminum housing that is extremely versatile and highly durable

Technical Information

Applications
Manufacturing,Warehouses
Average Rated Life
54,000 hr
Color Accuracy
80
Color Rendering Index
80
Color Temperature
4000 K
Correlated Color Temp
4,000 K
Dimmable?
Yes
Enclosure Rating
IP65
Enclosure Type
IP65
Fixture Wattage
218 W
Lamp Type
LED
Lens Color
White
Lens Material
Tempered Glass
Lens Type
Clear Tempered Glass
Lumens
31,423 Lumen
Material
Aluminum
Mounting Type
Pendant, Suspended
Power Source
Hardwired
Reflector Finish
Clear Polycarbonate or Diffuse Aluminum
Style
Traditional
Temperature Rating
-40 to 131 degrees F
Type
Round, General Distribution
Voltage
120 Volt
Wattage
220 Watt

Manufacturer Information

Brand
Lithonia Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
191848153925
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Gloss
Fixture Type
High Bay
Housing Finish
White/Gloss
Housing Material
Die Cast Aluminum
Product UPC
19184815392
Shape
Round
Weight
12.3 lb

Dimensions

Height
5-3/16 Inch
Length
15-3/4 Inch
Width
15-3/4 in

Certifications and Compliance

Country of Origin
Vietnam,Vietnam
Features
  • TECHNOLOGY: JEBL features a white die-cast aluminum housing along with a removable die-cast aluminum driver housing. Powder coat corrosion resistant finish provides 500 hours salt fog rating.
  • ENERGY SAVINGS: Easily replace 4-lamp T5HO, 6-lamp T8 with LEDs that save energy and reduce total cost of ownership
  • DIMMING: 0-10V dimming standard for a dimming range of 100 to 10 percent
  • RATINGS: CSA listed to US and Canadian Safety Standards; Wet location listed
  • VOLTAGE: Input voltage is MVOLT (120-277V) and HVOLT (347-480V)
  • HOURS OF LIFE: L90 > 54,000 hours

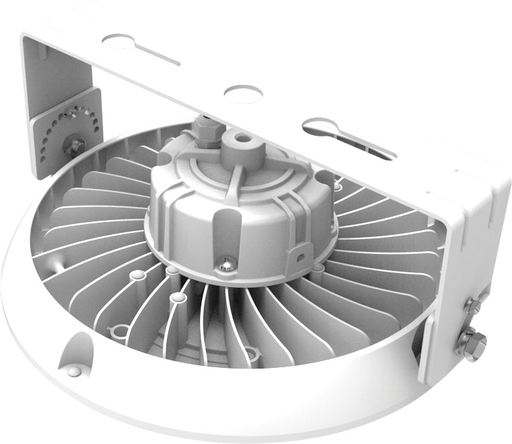

  • INSTALLATION: Install 1/4 in. NPT eye bolt with 1/2 in. thick loop and 6 ft. cord with dimming lead provided for easy installation and optional surface mount brackets
  • BATTERY: Field-installable LED emergency driver sold separately
  • WARRANTY: 5-year limited warranty
  • DIMENSIONS: diameter 13 in. x depth 5 in.
Standards
  • cUL
  • ULDLC Premium
  • DLC Standard
Applications
  • Manufacturing
  • Warehouses
