OnQ AC1058 8 PORT CAT5E NETWORK INT

Manufacturer: Legrand Pass & Seymour | Catalog # AC1058 | Codale Part # 4292221
$75.51/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

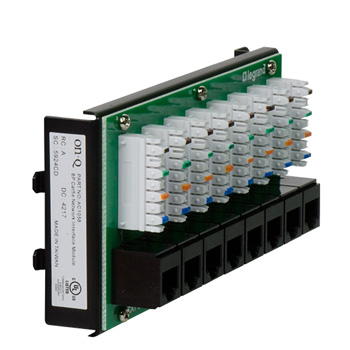

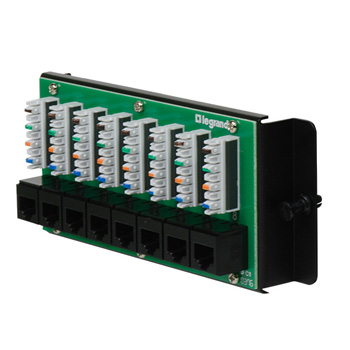

The AC1058, 8 Port Cat5e Network Interface Module is designed to connect your Router / Switch to wired networking locations throughout the home. Eight front-mounted 110-IDC punchdown terminals and RJ-45 connectors allow for easy configuration of the home network with patch panel simplicity. The network interface module is UL listed and exceeds TIA/EIA 568-C.2 industry standards.

Technical Information

Applications
Provides Connectivity for Ethernet Connected Devices like Computers, TV's, Gaming Systems and Network Streaming Devices
Cable Type
Category 5E
Material
Metal
Mounting Type
Tabs/Plungers and Grommets
Number of Ports
8
Temperature Rating
0 - 50 degrees C
Termination Type
110 IDC Punchdown / RJ45 Connectors - T568A Wiring

Manufacturer Information

Brand
OnQ Solutions
Sub Brand
On-Q

General Product Info

12-Digit UPC
804428432685
Color
Black/Green
Product UPC
80442843268

Dimensions

Depth
1-1/2 Inch
Height
6.41 Inch
Width
2.9 in
Features
  • Supports punchdown termination of up to 8 Cat5e data lines for easy interface with the home network
  • Provides connectivity for ethernet connected devices like computers, TV's, gaming systems and network streaming devices
  • Easy access to front mounted 110-IDC Punchdown terminals and RJ45 Jacks
  • Module mounts in all On-Q structured wiring enclosures
  • Supports termination using T568A wiring standard, is UL listed and exceeds TIA/EIA 568-C.2 industry standards
Eco-Benefit Information
  • RoHS Compliant
