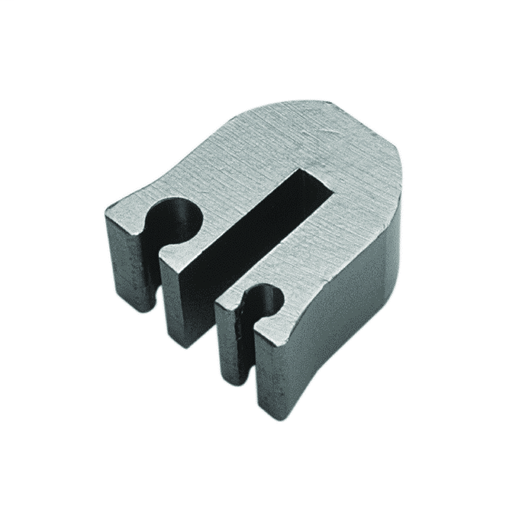

Burndy YG14B2TC2C6C Bus Bar Copper Alloy Connector, #2 Sol/and/or Str Copper #6 Sol/and/or Str Copper

Manufacturer: Hubbell-Burndy | Catalog # YG14B2TC2C6C | Codale Part # 4329745
$390.10/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Bus Bar Copper Alloy Connector, #2 Sol./and/or Str. Copper #6 Sol./and/or Str. Copper.

Technical Information

Applications
For Direct Burial And Cellular Tower Applicatons And Is Easier To Use Than Exothermic Connections
Conductor Type
CU C Str-Size;CU C Solid-Size;Bar-Size
Connection Type
Tap
Material
Copper
Plated?
No
Plating Type
Unplated
Size

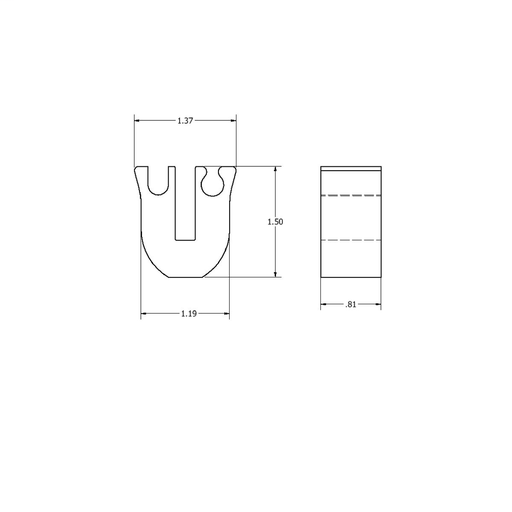

1.5 IN Height X 1.37 IN Width X 0.81 Length X 1/4 IN Ground Bar Thickness
Type
YG-B

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810199206
Product UPC
78181019920
Weight
0.3300 lb

Dimensions

Height
1.3 Inch
Length
1.6 Inch
Width
0.800 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Standards - Industry Standards Met
  • UL467
  • UL 486A
  • CSA C22.2 No 65
Features
  • Compression Busbar Connector
  • Easier to use than Exothermic Connections
  • Ideally suited for cellular tower applications.
Conductor Type
  • CU C Str-Size
  • CU C Solid-Size
  • Bar-Size
Industry Standard(s)
  • UL467
  • UL 486A
  • CSA C22.2 No 65
