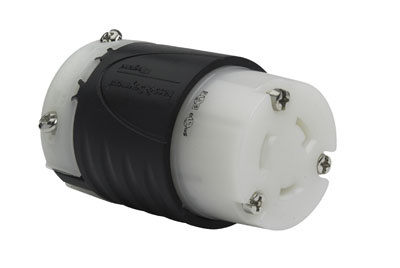

Product image for Pass & Seymour L520-CGCM 20 Amp 125 VAC 2-Pole 3-Wire L5-20R Black and White Nylon Locking Connector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Pass & Seymour L520-CGCM 20 Amp 125 VAC 2-Pole 3-Wire L5-20R Black and White Nylon Locking Connector

Manufacturer: Legrand Pass & Seymour | Catalog # L520CGCM | Codale Part # 4454905
$102.27/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Installation / Instruction Manual
Heavy-Duty Ground Continuity Monitoring (GCM) Connector, Black and White

Technical Information

Amperage
20 Amp
Applications
For Industrial use
Duty Rating
Heavy Duty
Material
Nylon
NEMA
L5-20R
Number of Conductors
3
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Ports
2
Number of Wires
3 Wire
Size
4.5x3.3x2.7
Type
Industrial Specification Grade
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Turnlok®

General Product Info

12-Digit UPC
785007265545
Color
Gray
Product UPC
78500726554
UNSPSC
39121403

Dimensions

Diameter
2.7 Inch
Length
3.3 Inch
Width
2.2 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Integral indication of ground continuity and power status. Continuous monitoring enhances personnel safety and adds convenience.
  • Dual, bright LED indicators with 360 degrees visibility. Green LEDs indicate proper ground continuity and power status. Red LEDs indicate ground continuity loss or reversed polarity. No LED indicates open hot, open neutral, or hot to ground cross.
  • For 250V configurations: Hot to ground cross will be indicated by a green and red LED.
  • NEMA configurations always visible for fast identification without disconnecting.
  • Exclusive neoprene dust shield on devices seals cable entry. Optional weatherproof boots (sold separately).
  • Chemical- and impact-resistant nylon housing features horizontal, easy-grip ribs on back body.
  • Exclusive, rugged two-piece cord grip (15 Amp only) accepts a wide range of cord widths. Provides uniform pressure for superior retention of conductors.
  • Recessed cord-grip screw reduces screwdriver slippage, improves safety. Quick-thread tri-drive assembly and cord-grip screws come backed-out and ready-to-wire.
  • Color-coded terminal screws are backed-out for fast installation.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
Certifications
  • cULus Listed
  • Federal Spec Listed
