PAN CB70-14-190 Pan-Lug™ CB70-14-19

Manufacturer: PANDUIT | Catalog # CB70-14-190 | Codale Part # 4517049
$693.01/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Product Catalog Page

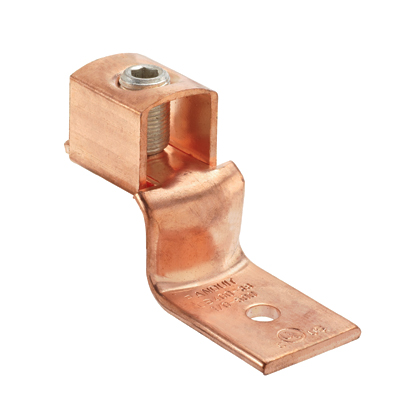

The CB70-14-190 Copper Mechanical Lug is made from high strength electrolytic copper to provide premium electrical and mechanical performance, Wide wire range-taking capability minimizes inventory, Internal pressure bar and V-bottom collar provide uniform clamping force on conductor to assure positive contact between conductor and connector, plated steel set screw provides high strength and durable electrical contact between conductor and connector, cULus Listed for use up to 600 Volts.

Technical Information

Amperage
90 Amp
Applications
Making Tap or Parallel Copper Connections
Barrel Length
0.5 in
Cable Size
AWG
Material
Copper
Number of Holes
1 Hole
Standard
CSA C22.2 No. 85,UL E23018,cULus
Stud Size
1/4 in
Tongue Thickness
0.08 in
Tongue Type
Offset Floating
Tongue Width
0.47 in
Type
Automatic, Metered, Service Entrance, Advanced
Voltage
600 Volt

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
613056878396
Product UPC
61305687839

Dimensions

Height
0.64 Inch
Overall Length
1.55 in
Width
0.47 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
India

Certifications & Compliance

Prop 65 Warning
N
Standards and Certifications
  • Standards Met: cULus Listed for use up to 600V & Temperature Rated to 90°C
Prop 65
  • N
