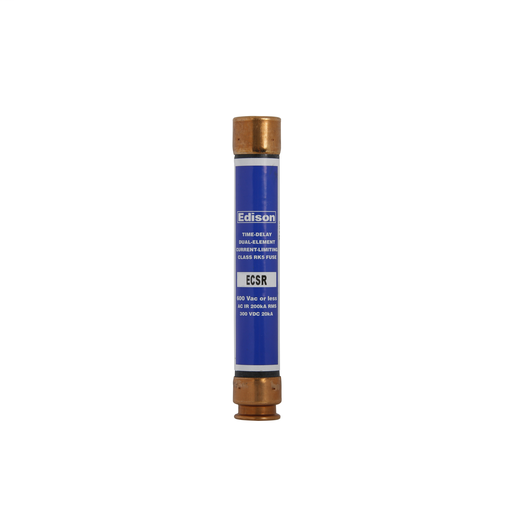

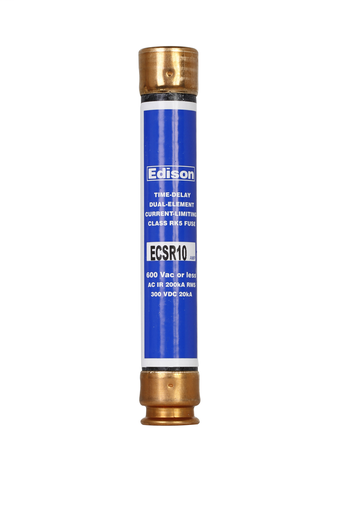

Product image for BUSS ECSR10 UL CLASS RK-5 TIME DELA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Email

BUSS ECSR10 UL CLASS RK-5 TIME DELA

Manufacturer: Eaton Bussmann | Catalog # ECSR10 | Codale Part # 4614039
$44.45/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Eaton Edison ECSR fuse, Time-delay current-limiting fuse, Superior overload and cycling capabilities, 10 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 200 kAIC, Standard, 600 V

Technical Information

Amperage
10 Amp
Applications
Ind Facilities & Factories - Facility: Safety and Security Systems
Connection Type
Ferrule
Element
Dual
End Type
Ferrule
Interrupt Rating
200 kAIC
Response Time
10 S At 500%
Size
0.81 In Diameter X 5.00 In Length
Standard
CE,CSA C22.2,UL
Tc Connection
Ferrule end x ferrule end
Type
Current Limiting,Time-Delay
Voltage
600 Volt

Manufacturer Information

Brand
Bussmann
Sub Brand
Edison

General Product Info

12-Digit UPC
782634508281
Class
Class RK5
Product UPC
78263450828
Weight
.17 lb

Dimensions

Diameter
0.81 Inch
Height
5 Inch
Length
0.81 Inch
Width
.81 in
