Klein CL490 Dual Display Clamp Meter

Manufacturer: Klein Tools | Catalog # CL490 | Codale Part # 4719030
$119.99 /ea
ea
Log in or register to view your price, purchase history, and more!
27 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
Klein Tools CL490 Dual Display Clamp Meter is auto-ranging for precise measurements with a secondary display for easier viewing in tight spaces. The meter reads AC/DC current, voltage, resistance, continuity,frequency, and capacitance; all with True RMS accuracy. It features diode testing and temperature is taken, via thermocouple. There is NCV detection with audio-visual alerts for additional functional applications. To ensure visibility in any lighting, there is a backlit and hi-vis display.

Technical Information

Applications
Capacitance And Tests Diodes Via The Test Leads,Continuity,DC Microamp Current,Duty-Cycle,Frequency,Measures AC/DC Current And NCVT Via The Clamp And AC/DC Voltage,Resistance,Temperature With Thermocouple
Display Type
4000 Count Backlit,Hi-Viz
Frequency
10 Hz
Material
ABS,Electronic Components
Type
Dual Screen AC/DC Current TRMS Clamp
Voltage
600 Volt

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644694271
Product UPC
09264469427
Weight
1.400 lb

Dimensions

Depth
9.17 Inch
Height
1.74 Inch
Overall Length
3.54 in
Width
1.5 in
Features

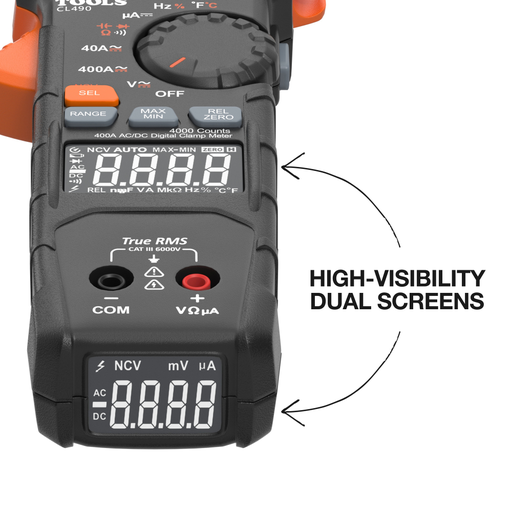

  • Dual Display digital clamp meter allows users to see readings in tight space areas
  • AC/DC clamp meter with True RMS provides accurate and reliable measurements across various applications

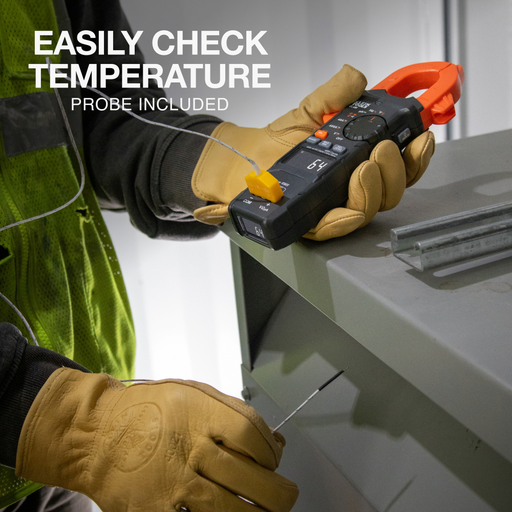

  • Measures AC/DC current and NCVT via clamp; AC/DC voltage, resistance, continuity, frequency/duty cycle, DC microamps, diode test and capacitance via test leads; temperature via thermocouple

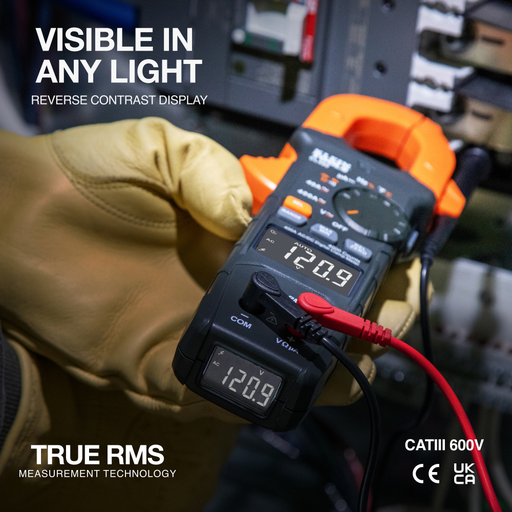

  • Backlit reverse-contrast LCDs for clear data and best view-ability in all environments
  • Withstands drops from 6.6 feet (2 m), and includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 2 x AA batteries
  • Ergonomic design provides a comfortable grip, with easy dial adjustment using the thumb
  • Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
  • Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
  • Bottom Display; Automatically Ranging; TRMS Measurement; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT
Warnings
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not attempt to measure resistance or continuity on live circuits.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
  • Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
