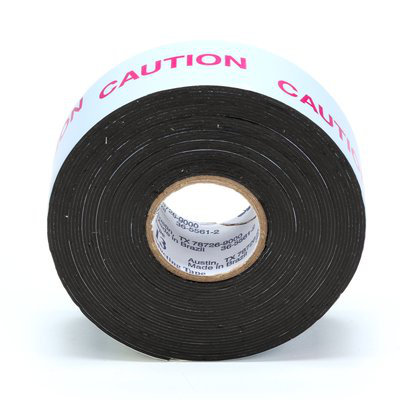

3M 13-3/4x15FT Semi-Conducting Tape

Manufacturer: 3M | Catalog # 13-3/4x15FT | Codale Part # 50207

$21.57/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
71 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch

Technical Information

Applications
For High Voltage Applications
Backing Material
Ethylene Propylene Rubber
Material
Ethylene Propylene
Max Operating Temperature
266 degrees F
Size
.75 in x 15 ft
Temperature Rating
90 - 130 C
Type
Insulating

Manufacturer Information

Family Brand Name
3M
Sub Brand
Scotch

General Product Info

Color
Black
Product Type
Rubber And Splicing Tapes
Product UPC
05400715017

Dimensions

Length
15 Foot
Thickness
0.76 mm
Width
3/4 in
Codale Part No.
50207
Color
Black
Length
15 Linear Foot
Material
Semi-Conducting EPR with Liner
Thickness
30 mil
Width
1 Inch
  • Scotch® Electrical Tape 13 is non-vulcanizing and shelf stable while maintaining stable conductivity over a wide temperature range. The tape elongates easily and conforms to irregular shapes. This semi-conducting, premium-grade tape provides excellent shielding for cable joints on solid dielectric insulated power cables. It withstands temperatures up to 194 degrees F (90 degrees C). The ethylene propylene, rubber-based tape electrically rounds out high-voltage connectors and bonds to insulating materials that minimize electrical stresses. ASTM Approved & RoHS 2002/65/EC Compliant.
  • Scotch® Electrical Semi-Conducting Tape 13 is a 30-mil, highly conformable, electrical semi-conducting tape. This tape retains its conductivity with stretch. It offers excellent performance with the most solid dielectric cable insulations and conductors. The tape is suitable for indoor or outdoor applications.
  • Tape measures 3/4 in x 15 ft x 30 mil
  • 50 rolls/case, BULK
  • Comes in black color
  • ASTM Approval and RoHS 2011/65/EU Compliant.
  • Rated for 600V applications
  • Withstands temperatures up to 194 degrees F (90 degrees C)
  • Rubber resin offers optimized adherence
  • Compatible with high-voltage splicing and terminating materials
