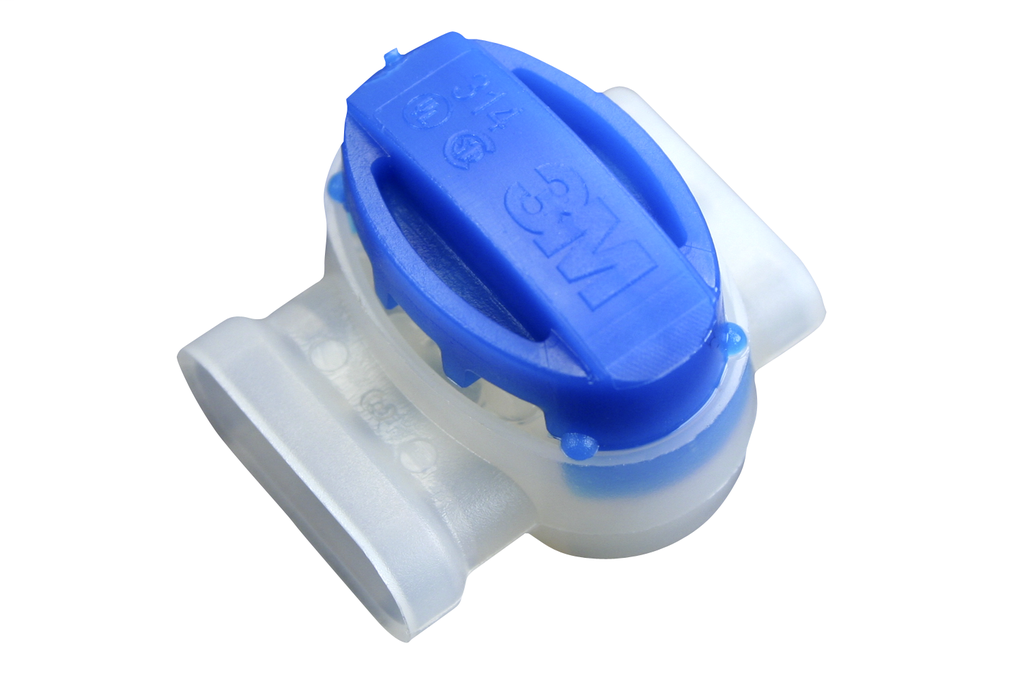

3M 314-BOX 50/Box Insulation Displacement Connector

Manufacturer: 3M | Catalog # 314-BOX | Codale Part # 50488

$1.32/ea
ea
Order in multiples of 50 (pack qty)
Adding...
Log in or register to view your price, purchase history, and more!
200 available

For Delivery

Order by 5:00pm MT for delivery Monday
Not available for delivery*
Check your local branch

Technical Information

Applications
For Low-Voltage Applications and used to Connect 2 or 3 Wires While Insulating the Connection
Blade Dimensions
0.95 in L x 0.92 in W
Cable Size
22-14 AWG
Cable Type
Solid/Stranded Copper
Conductor Size
22 To 14 AWG
Connection Type
Pigtail
Contact Material
Brass
Flame Retardant
Yes
Material
Nylon
Max Operating Temperature
221 degrees F
Type
Self-Stripping, Fully Insulated
Voltage
600 Volt

Manufacturer Information

Family Brand Name
3M
Sub Brand
Scotchlok

General Product Info

Color
Blue Cap and White Body
Housing Material
Flame Retardant Nylon
Product UPC
05400709230
  • Brass element construction for good conductivity and tin plating for corrosion resistance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Blue cap and white body nylon-insulated connector is suitable to connect 2 or 3 wires
  • Accommodates 22 to 14 AWG solid/stranded
