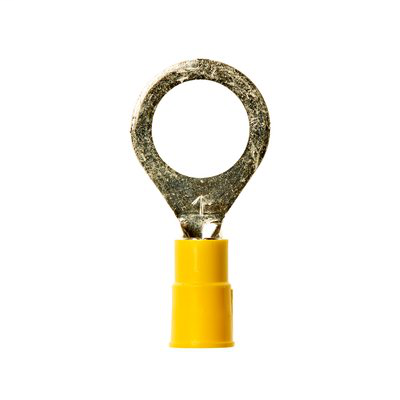

3M MV10-12RK MV10-12RK VINYL INS BR

Manufacturer: 3M | Catalog # MV10-12RK | Codale Part # 50993
$0.80/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet PDF Spec Sheet Product Catalog Page

Technical Information

Material
PVC
Terminal Size
12 - 10 AWG
Type
Ring

Manufacturer Information

Family Brand Name
Scotchlok
Sub Brand
Scotchlok

General Product Info

Product UPC
05400701931

Dimensions

Overall Length
1.5 in
Width
0.75 in
Codale Part No.
50993
Conductor / Wire Size
12 - 10 AWG
Length
1.5 Inch
Terminal Type
Ring
Thickness
0.04 Inch
Width
0.75 Inch
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Accommodates wire sizes 12 to 10 AWG
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Stud size 1/2 in
  • 500/case
  • Yellow vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
