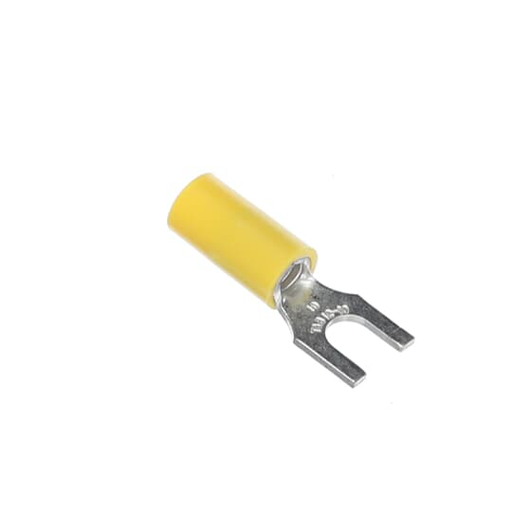

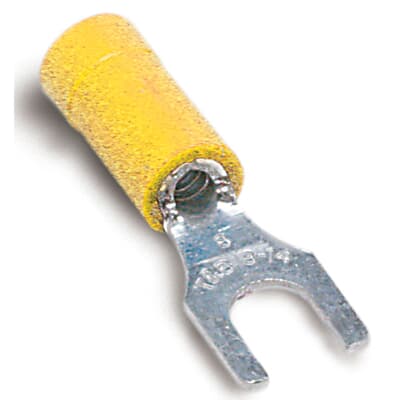

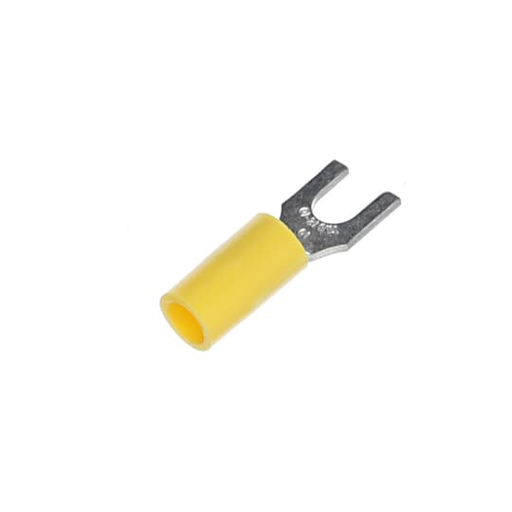

Thomas & Betts 10RC-10F Vinyl-Insulated Fork Terminal - #12-10, #10bolt

Manufacturer: ABB Thomas & Betts | Catalog # 10RC-10F | Codale Part # 5405
$134.99/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
400 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
Vinyl-Insulated Fork Terminal, Length 1.09 Inches, Width .38 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800431
Color
Yellow
Finish
Tin Plated
Product UPC
78621080043
Used With
Round Conductors
Weight
0.2800 lb

Dimensions

Thickness
.04 in
Certifications
  • CSA
  • UL
Features
  • These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
