Thomas & Betts 14RB-8F 18 to 14 AWG #8 Stud Blue Electrotinned Copper Vinyl Insulated Fork Terminal

Manufacturer: ABB Thomas & Betts | Catalog # 14RB-8F | Codale Part # 5407
$78.99/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Primary Spec Sheet PDF Spec Sheet

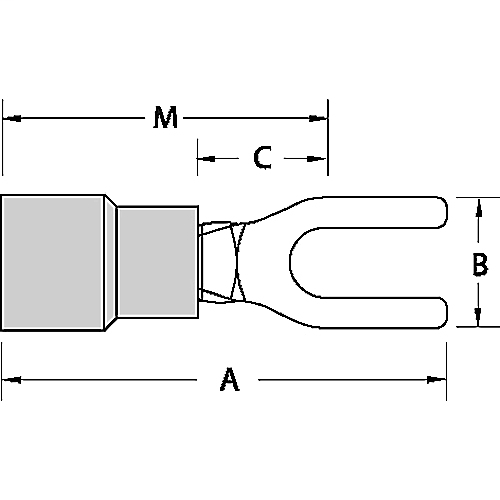

Vinyl-Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Stud Size
#8
Temperature Rating
105 C
Terminal Type
RB
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Family Brand Name
Thomas & Betts
Sub Brand
Sta-Kon

General Product Info

Color
Blue
Finish
Tin Plated
Product UPC
78621080066
Used With
Round Conductors

Dimensions

Height
7.2 Inch
Thickness
.03 in
Width
8.7 in
Codale Part No.
5407
Color
Blue
Finish
Electro Tin-Plated
Flammability Rating
UL 94 V-0
Material
Copper
Product Long Description
Vinyl-Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
Temperature Rating
105°C
Voltage Rating
600V
  • CSA
  • UL
  • These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
