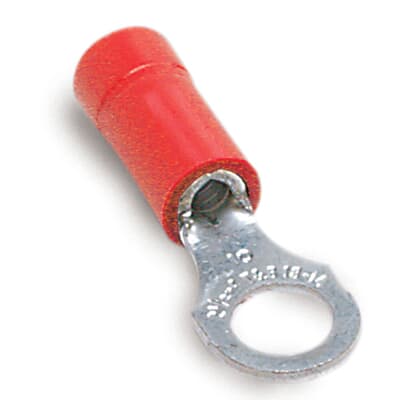

Image thumbnail 3
Email

Thomas & Betts 18RA-8 Vinyl-Insulated Ring Terminal - #22-16, #8bolt

Manufacturer: ABB Thomas & Betts | Catalog # 18RA-8 | Codale Part # 5413
$97.99/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Vinyl-Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .150, Bolt Hole #8, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
22-16 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Short Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800882
Color
Red
Finish
Tin Plated
Product UPC
78621080088
Used With
Round Conductors
Weight
0.2600 lb

Dimensions

Height
8.8 Inch
Thickness
.03 in
Width
9.4 in
Certifications
  • UL
  • CSA
Features
  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
