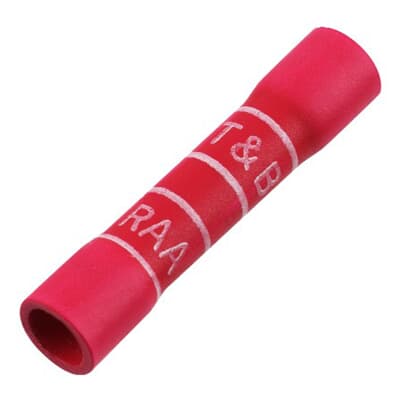

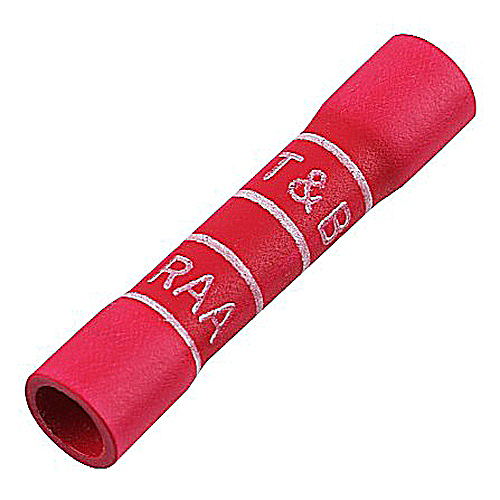

Thomas & Betts 2RA18X 1.1 Inch Length 22-18 AWG Wire Range Expanded Insulated Vinyl Butt Splice

Manufacturer: ABB Thomas & Betts | Catalog # 2RA18X | Codale Part # 5432
$80.99/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Adding...
Log in or register to view your price, purchase history, and more!
400 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch
Primary Spec Sheet PDF Spec Sheet

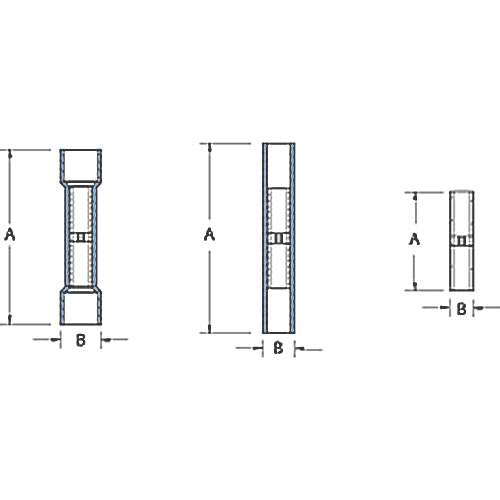

Expanded Vinyl-Insulated Butt Splice, Length 1.13 Inches, Width .25 Inches, Maximum Insulation Diameter .170, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
22-18 AWG
Contact Material
Copper
Insulation Type
Expanded Insulated Vinyl
Material
Copper
Temperature Rating
105 C
Type
Expanded
Voltage
600 Volt

Manufacturer Information

Family Brand Name
Thomas & Betts
Sub Brand
Sta-Kon

General Product Info

Color
Red
Finish
Electro-Tin Plated
Product UPC
78621080719
Brand Name
Sta-Kon
Codale Part No.
5432
Color
Red
Finish
Electro -Tin Plated
Insulation Material
PVC
Material
Copper
Product Long Description
Expanded Vinyl-Insulated Butt Splice, Length 1.13 Inches, Width .25 Inches, Maximum Insulation Diameter .170, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated
Temperature Rating
105 Degrees C
Type
Splice Connector
Voltage Rating
600V
  • In butt splices, the wires are butted together and crimped at each end of the splice. These splices are color-coded according to wire size.
