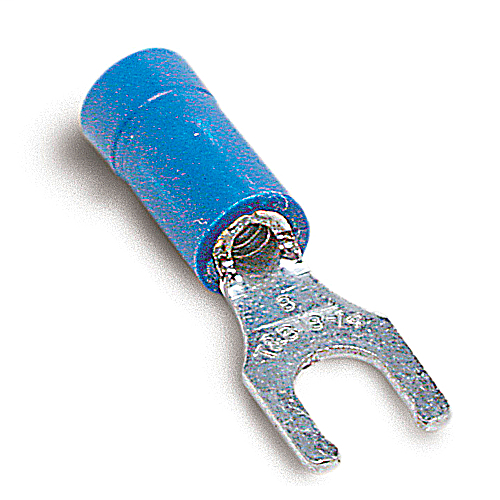

Thomas & Betts 14RB-8FL Vinyl-Insulated Locking Fork Terminal - #18-14, #8bolt

Manufacturer: ABB Thomas & Betts | Catalog # 14RB-8FL | Codale Part # 688082

$88.99/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
300 available

For Delivery

Order by 5:00pm MT for delivery Monday
Not available for delivery*
Check your local branch
Vinyl-Insulated Locking Fork Terminal, Length .97 Inches, Width .29 Inches, Maximum Insulation .170, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#8
Temperature Rating
105 C
Terminal Type
RB
Type
Locking, Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Family Brand Name
Thomas & Betts
Sub Brand
Sta-Kon

General Product Info

Color
Blue
Finish
Tin Plated
Product UPC
78621080654
Used With
Round Conductors

Dimensions

Height
2.3 Inch
Thickness
.03 in
Width
2-1/4 in
Codale Part No.
688082
Color
Blue
Finish
Electro Tin-Plated
Flammability Rating
UL 94 V-0
Material
Copper
Product Long Description
Vinyl-Insulated Locking Fork Terminal, Length .97 Inches, Width .29 Inches, Maximum Insulation .170, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
Temperature Rating
105°C
Voltage Rating
600V
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
  • CSA
  • UL
