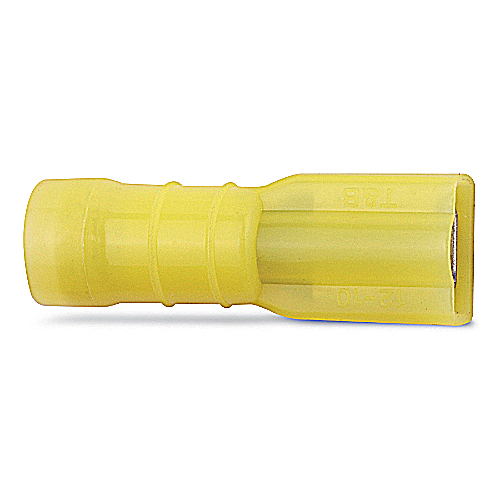

Thomas & Betts 10RC-2577 Nylon Fully-Insulated Female Disconnect - 12-10, .250x.032tab

Manufacturer: ABB Thomas & Betts | Catalog # 10RC-2577 | Codale Part # 79642

$157.95/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Adding...
Log in or register to view your price, purchase history, and more!
150 available

For Delivery

Order by 5:00pm MT for delivery Monday
Not available for delivery*
Check your local branch
Vinyl Fully Insulated Female Disconnect, Length 1.04 Inches, Width .38 Inches, Maximum Insulation .225, Tab Size .250x.032, Wire Range #12-#10 AWG, Color Yellow, Brass, Tin Plated

Technical Information

Conductor Size
10-12 AWG
Insulation Material
Nylon
Insulation Type
Nylon,Polyamide
Material
Brass
Temperature Rating
105 C
Type
Long Sleeve
Voltage
600 Volt

Manufacturer Information

Family Brand Name
Thomas & Betts
Sub Brand
Sta-Kon

General Product Info

Color
Yellow
Finish
Electro-Tin Plated
Product UPC
78621083931
Used With
Round Conductors
Codale Part No.
79642
Color
Yellow
Disconnect Type
Female - 250 Series
Finish
Electro Tin-Plated
Flammability Rating
UL 94 V-2
Material
Brass
Product Long Description
Vinyl Fully Insulated Female Disconnect, Length 1.04 Inches, Width .38 Inches, Maximum Insulation .225, Tab Size .250x.032, Wire Range #12-#10 AWG, Color Yellow, Brass, Tin Plated
Temperature Rating
105°C
Voltage Rating
600V
  • Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
  • UL
  • CSA
