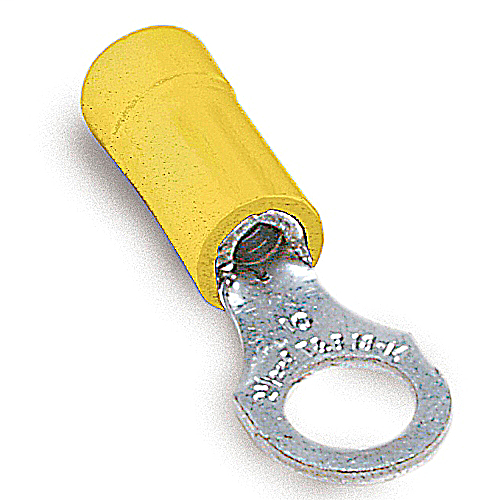

Thomas & Betts 10RC-516 Vinyl-Insulated Ring Terminal - #12-10, 5/16"bolt

Manufacturer: ABB Thomas & Betts | Catalog # 10RC-516 | Codale Part # 8420

$119.99/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Adding...
Log in or register to view your price, purchase history, and more!
150 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch
Vinyl-Insulated Ring Terminal, Length 1.17 Inches, Width .50 Inches, Maximum Insulation .210, Bolt Hole 5/16 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
12-10 AWG
Insulation Material
PVC
Material
Copper
Standard
UL E9809
Stud Size
5/16 in
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Family Brand Name
Thomas & Betts
Sub Brand
Sta-Kon

General Product Info

Color
Yellow
Finish
Tin Plated
Product UPC
78621080053
Used With
Round Conductors
Brand Name
Sta-Kon
Codale Part No.
8420
Color
Yellow
Insulation Material
PVC
Material
Copper
Product Long Description
Vinyl-Insulated Ring Terminal, Length 1.17 Inches, Width .50 Inches, Maximum Insulation .210, Bolt Hole 5/16 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
Type
Ring Terminal
Voltage Rating
600V
Wire Size
12-10
