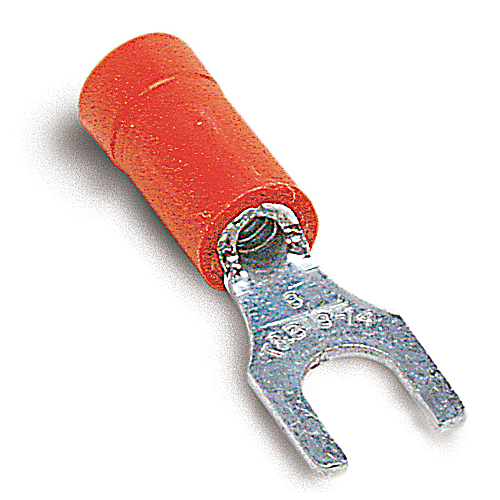

Thomas & Betts 18RA-10F 22 to 16 AWG #10 Stud Red Electrotinned Copper Vinyl Insulated Fork Terminal

Manufacturer: ABB Thomas & Betts | Catalog # 18RA-10F | Codale Part # 8446

$81.99/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
50 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch
Vinyl-Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .150, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
22-16 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
Vinyl
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
105 C
Terminal Type
RA
Type
Short Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Family Brand Name
Thomas & Betts
Sub Brand
Sta-Kon

General Product Info

Color
Red
Finish
Electro Tin Plated
Product UPC
78621080093

Dimensions

Height
8.8 Inch
Thickness
.03 in
Width
9-1/2 in
Codale Part No.
8446
Color
Red
Finish
Electro Tin-Plated
Flammability Rating
UL 94 V-0
Material
Copper
Product Long Description
Vinyl-Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .150, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated
Temperature Rating
105°C
Voltage Rating
600V
  • CSA
  • UL
  • These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
