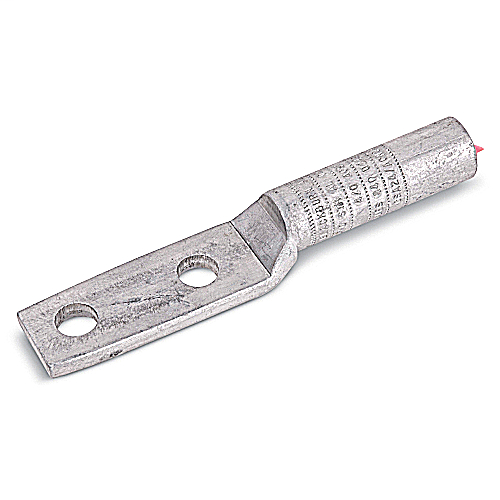

BLACKBURN AL24 2-HOLE COMPRESSION TERMINAL

Manufacturer: ABB Elastimold | Catalog # AL24 | Codale Part # 89512
$1,790.99/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch
PDF Spec Sheet
Aluminum Two-Hole Lug - Straight Long Barrel, Wire Range 397 30/7, 26/7, 18/1, 477 18/1 ASCR, 450-500 Stranded, 600 kcmil, 1/2 Inch Bolt Size, Blind-End, Hydraulic Dies: 106H, CSA 28, B20AH, EEI 14A, 318, 1 5/16

Manufacturer Information

Family Brand Name
N/A

General Product Info

Product UPC
78378604732
Application
For Aluminum and Copper Conductor.
Brand Name
Blackburn
Cable Size
397 30/7, 26/7, 18/1, 477 18/1 ASCR, 450-500 Stranded, 600 kcmil
Codale Part No.
89512
Connection Type
Crimp
Material
Aluminium
Mounting
NEMA Standard Mounting Holes
Product Long Description
Aluminum Two-Hole Lug - Straight Long Barrel, Wire Range 397 30/7, 26/7, 18/1, 477 18/1 ASCR, 450-500 Stranded, 600 kcmil, 1/2 Inch Bolt Size, Blind-End, Hydraulic Dies: 106H, CSA 28, B20AH, EEI 14A, 318, 1 5/16
Type
Compression Connector
