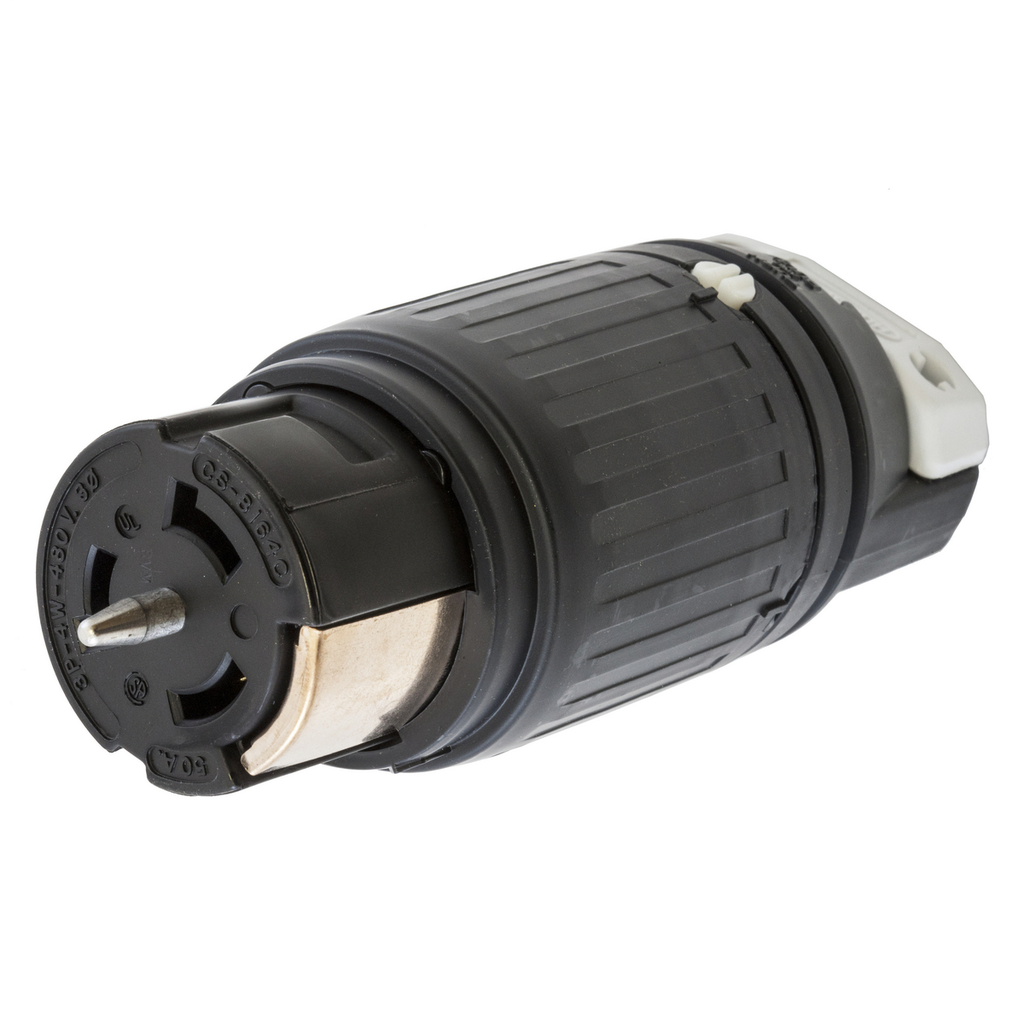

HUBBELL CS8164C 50AMP 480V 3PHASE LOCKING CONNECTOR

Manufacturer	Hubbell Wiring Device-Kellems
Mfg Catalog #	CS8164C
Codale Part #	105137

Overview

UPC	78358582842
Product Description	TWISTLOCK FEMALE CONNECTOR 50A 3PHASE 3P4W
Catalog Description	LOCKING CONN, 50A 480V, 3P4W
Codale Part No.	105137
Product Long Description	Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 50A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
Type	Connector Body
Application	Heavy Duty Industrial
Material	Nylon
Color	Black, White
Voltage Rating	3-Phase Delta 480 VAC
Length	6.50 in
Amperage Rating	50 A
Width	2.56 in
Number of Poles	3-Pole
Wire Size	#10 AWG to #6 AWG
Height	2.50 in
Phase	Three Phase
Insulation Material	Insulated Body
Operating Temperature	Maximum continuous 75°C and minimum -40°C without Impact
Number of Wires / Conductors	4-Wire
Enviromental Conditions	Indoor Dry Unless Protected By Additional Means
Weight	1.05 lb
Current Rating	50 A
Dielectric Strength	Withstands 2,000V minimum
UNSPSC	39121421
Product Short Description	Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 50A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
Size	6.50 in x 2.56 in x 2.50 in
Item Long Description	Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 50A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
MDM Pkg GTiN	00783585828428
Length	6.50 in
Width	2.56 in
Size	6.50 in x 2.56 in x 2.50 in
Color	Black and White
Voltage	480 Volt
Type	Standard, Straight
Material	Composite
Number of Conductors	4
Conductor Size	6 AWG
Applications	Heavy Duty Industrial
Height	2.50 in
Weight	1.05 lb
Connection Type	Pressure Screw
Temperature Rating	-25 to 75 C with Im
Family Brand Name	Hubbell Wiring Devic
Number of Ports	3
Tc Connection	Pressure Screw Termi
Current	50 A
Number of Poles	3 Pole
Number of Wires	4
Sub Brand	Twist-Lock, Insulgr
Standard	CSA C22.2 No.42,UL 4
MDM PRODUCT KEYWORD	CS8164, CS8164, CS8164, CS8164-C
Environmental Conditions	Indoor Dry Unless Pr
