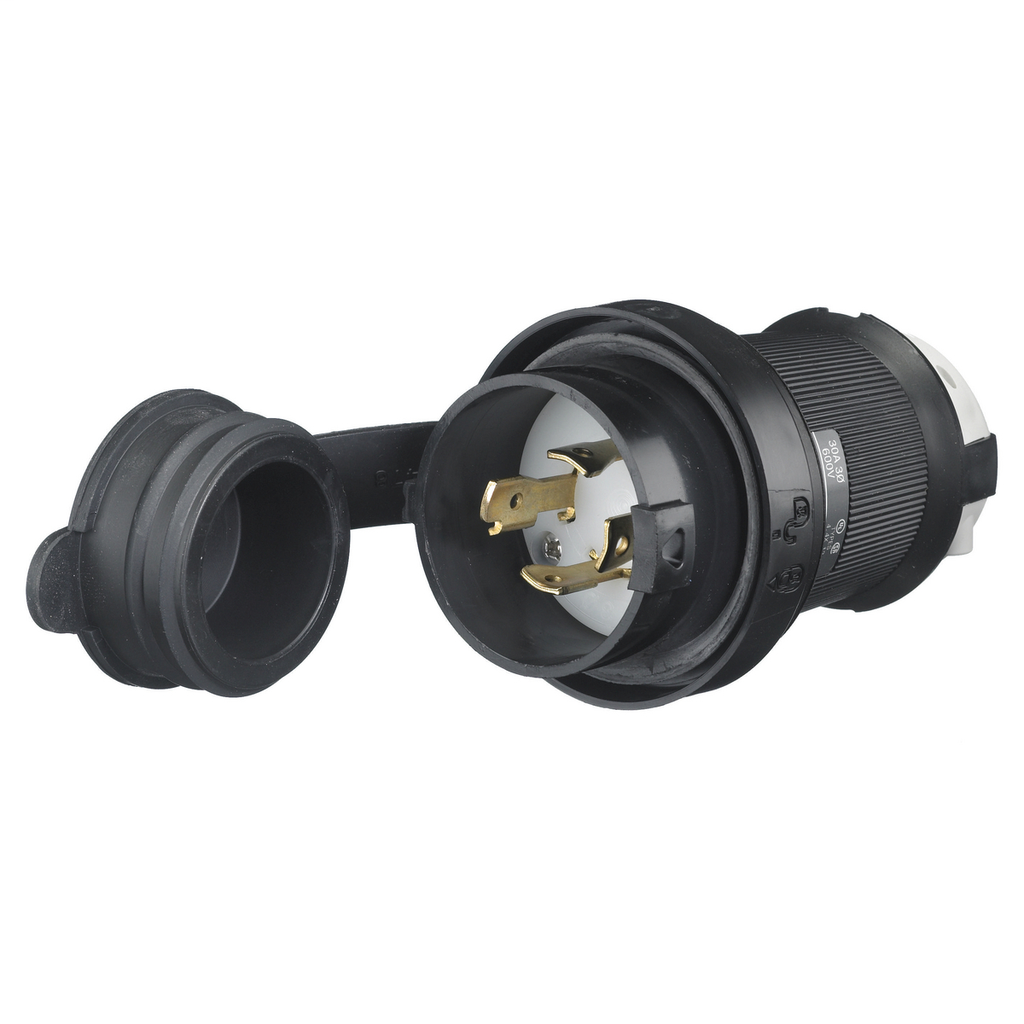

HUBBELL HBL2741SW 30AMP 3PHASE 600V 3P4W NEMAL17-30 TWIST LOCK PLUG W/ SAFETY SHROUD

Manufacturer	Hubbell Wiring Device-Kellems
Mfg Catalog #	HBL2741SW
Codale Part #	104699

Overview

UPC	78358523200
Catalog Description	LKG WT S/SHRD PLG, 30A3P 600V, L17-30P
Codale Part No.	104699
Product Long Description	Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Male Plug, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, NEMA L17-30P, Screw Terminal , Black PBT housing, White PBT clamps.
Type	Plugs
Application	Extra Heavy Duty Industrial
Material	Composite
Voltage Rating	600 V
Length	2.94 in
Amperage Rating	30 A
Width	2.94 in
Number of Poles	3-Pole
Wire Size	#16 AWG to #8 AWG
Height	4.40 in
Phase	Three Phase
Wattage	18000 W
NEMA Rating	L17-30P
Operating Temperature	Maximum continuous 75°C and minimum -40°C without Impact
Number of Wires / Conductors	4-Wire
Enviromental Conditions	Watertight
Weight	0.70 lb
Cord Type	All Listed Portables
Current Rating	30 A
Dielectric Strength	Withstands 2,000V minimum
UNSPSC	39121403
Product Short Description	Locking Devices, Twist-Lock®, Watertight Safety Shroud, Male Plug, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, L17-30P, Screw Terminal , Black and White
Size	2.94 in x 2.94 in x 4.40 in
Item Long Description	Locking Devices, Twist-Lock, Watertight Safety-Shroud, Male Plug, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, NEMA L17-30P, Screw Terminal , Black PBT housing, White PBT clamps.
MDM Pkg GTiN	00783585232003
Length	2.94 in
Width	2.94 in
Size	2.94 in x 2.94 in x 4.40 in
Color	Black/White
Voltage	600 Volt
Type	Standard, Shrouded
Material	PBT
Conductor Size	16-8 AWG
Cord Type	Portable
Applications	For Extra Heavy Duty Industrial Applications
Mounting Type	Surface, Cord
Height	3.668 in
Weight	0.70 lb
Wire Size	16 AWG-8 AWG
Wattage	18000 Watt
Temperature Rating	-40 to 75 C Continu
Family Brand Name	Hubbell Wiring Devic
Grounding	Yes
Tc Connection	Terminal Screws
Dielectric Strength	2000 V
Current	30 A
Blade Dimensions	4.4 in H
Cord Size	0.35 - 1.15 in
Environmental Conditions	Watertight, UL 94 Re
Number of Poles	3 Pole
Number of Wires	4
Sub Brand	Twist-Lock, Waterti
