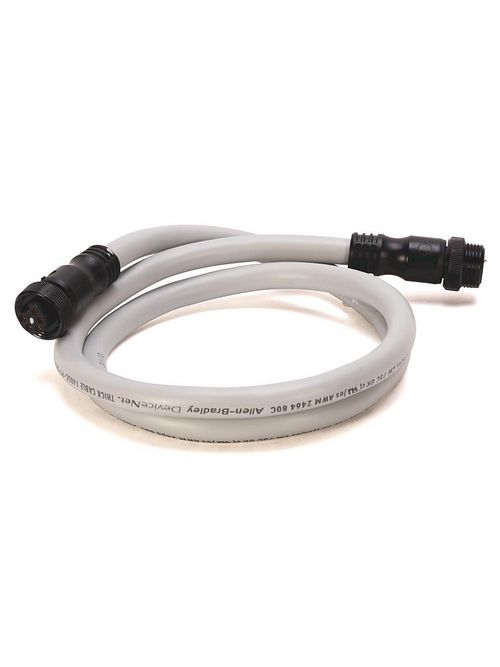

A-B 1485C-P1N5-C DeviceNet Physical
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$93.83/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen Bradley / Rockwell
Mfg Catalog # 1485C-P1N5-C
Codale Part # 504520

Features

  • Ratcheting coupling nut resists vibration
  • Polyvinylchloride (PVC) jacket resists oil and chemicals
  • Watertight connections (NEMA 4, 6P; IP 67)
  • Gold plated contacts

Specifications

  • Armour: Thick Media, Grey PVC
  • Connector: Standard - Epoxy Coated Zinc
  • Number Of Pins: Standard 5-pin

Cable Data

  • Cable Type: Thick Media, Grey PVC
  • Coupling Nut Material: Standard - Epoxy Coated Zinc
  • Cable Details: Standard Passive Cable
  • Standard or Build-to-Order Cable Length: 1 meter (3.28 feet)
  • First End Connector Style: Mini, Straight Female
  • Number of Pins: Standard 5-pin

Device End Data

  • Second End Termination Style: Cable
  • Second End Conductors: Standard 5 leads

Overview

UPC 61132021483
Codale Part No. 504520
Product Long Description DeviceNet Physical Media, Thick Media, Grey PVC, Standard Passive Cable, Mini, Straight Female, Standard 5-Pin, Cable, Standard 5 leads, Mini, Straight Female, Cable, Standard - Epoxy Coated Zinc, 1 M, 1.0
Cable Type Thick Media, Grey PVC
Connector Type Standard - Epoxy Coated Zinc
Number of Pins Standard 5-pin
Item Long Description DeviceNet Physical Media
MDM Pkg GTiN 00611320214833
Length 0-3 m
Type Thick, Standard
Connection Type Standard - Epoxy Coated Zinc
Number of Pins 5
Family Brand Name Allen Bradley
Construction Thick Media, Grey PVC,Standard - Epoxy Coated Zinc
Standard KC
Color Gray
Material Epoxy Coated Zinc
Number of Conductors 5
Connector Type Mini Straight Female
Temperature Rating -20 to 70 C
Enclosure Type NEMA 1, 2, 3, 4, 6P, 12, 13
Cable Length 1 m
Bend Radius 122 mm
Used With DeviceNet Round Media System
Sub Brand DeviceNet
