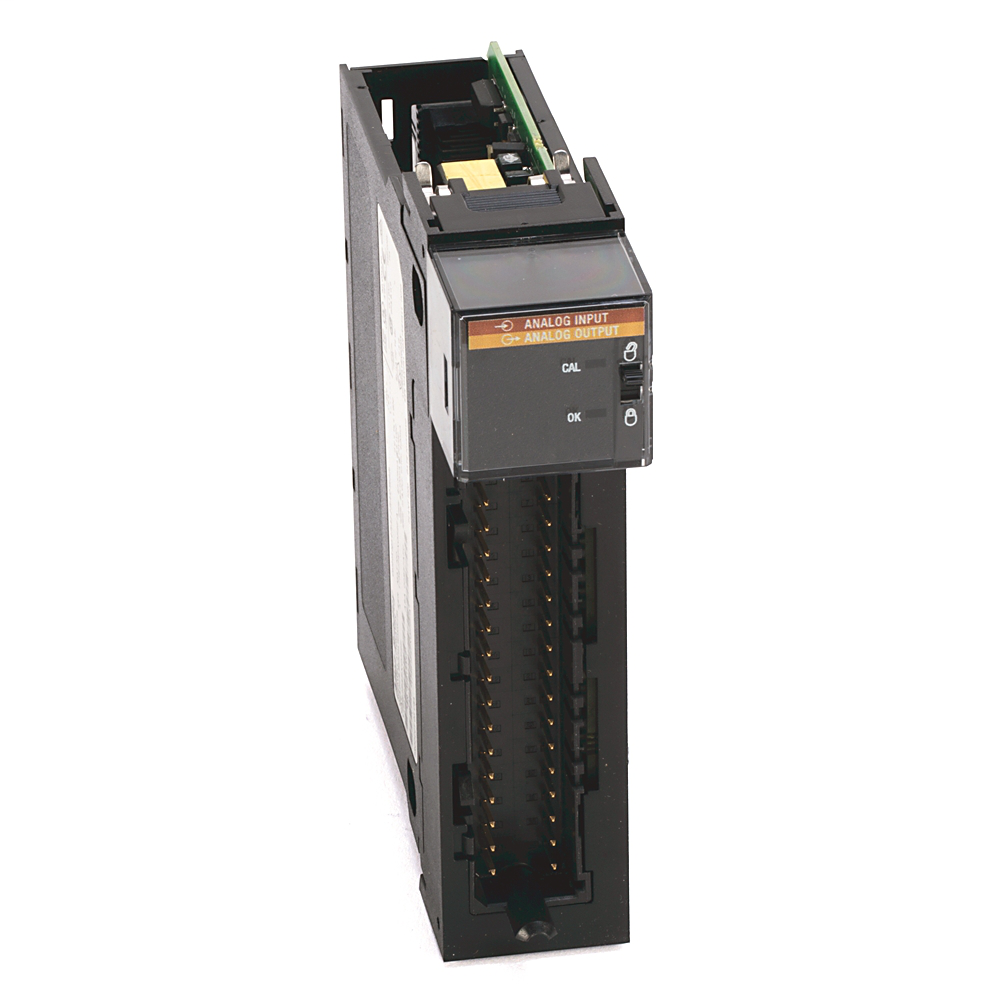

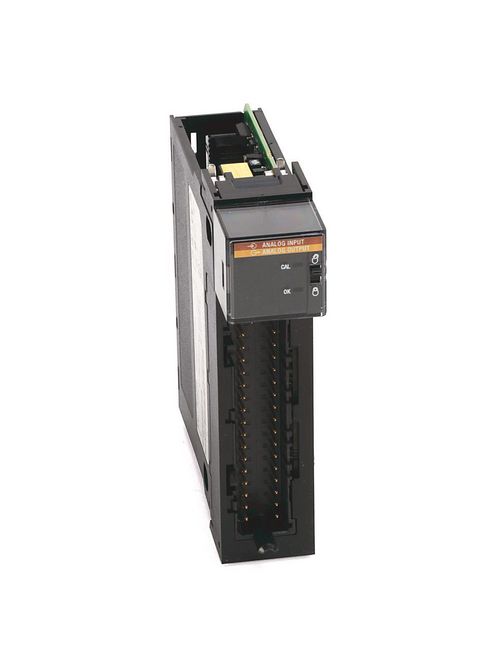

A-B 1756-IF4FXOF2F FAST ANALOG 4 CURR-VOLT IN 2 CURR-VOLT OUT 36PIN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,900.00/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen Bradley / Rockwell
Mfg Catalog # 1756-IF4FXOF2F
Codale Part # 476998
A-B 1756-IF4FXOF2F FAST ANALOG 4 CURR-VOLT IN 2 CURR-VOLT OUT 36PIN

Overview

UPC 61259826921
Catalog Description Combination Module,Analog,4 High Speed Current or Voltage Input,2 High Speed Current or Voltage Output,6 Point,36 Pin
Codale Part No. 476998
Product Long Description Combination Module, Analog, 4 High Speed Current or Voltage Input, 2 HighSpeed Current or Voltage Output, 4 Point
Type Analog Combo Module
Sub Brand ControlLogix
Mounting Chassis
Enclosure Specification None (open-style)
Operating Temperature 0...60 °C (32...140 °F)
Display Type Module Health, In Calibration Mode
Input Signal +/- 10V, 0-10.5V, 0-5.25V. 0-21mA
Output Signal +/- 10.4V, 0-21mA
Isolation None between channels (Single Ended)
Controller 5570 Standard and Safety
Product Short Description Fast Analog 4 Cur-Volt In/2 Cur-Volt Out (36 Pin)
Item Long Description ControlLogix 4 Point Analog Comb Module
MDM Pkg GTiN 00612598269211
Operating Temperature 0 To 60 C
Type Analog Combination
Mounting Type Chassis
Family Brand Name Allen Bradley
Tc Connection Tension Clamp Spring
Output 4 Analog
Blade Dimensions 38.1 mm W x 111.25 m
Output Signal +/- 10.4V, 0-21mA
Sub Brand ControlLogix
Input Voltage 0-10.5 V
Output Voltage 0-21 mA
Standard C-TICK,CE,CSA,KC,MAR
Display Type Module Health, In Ca
