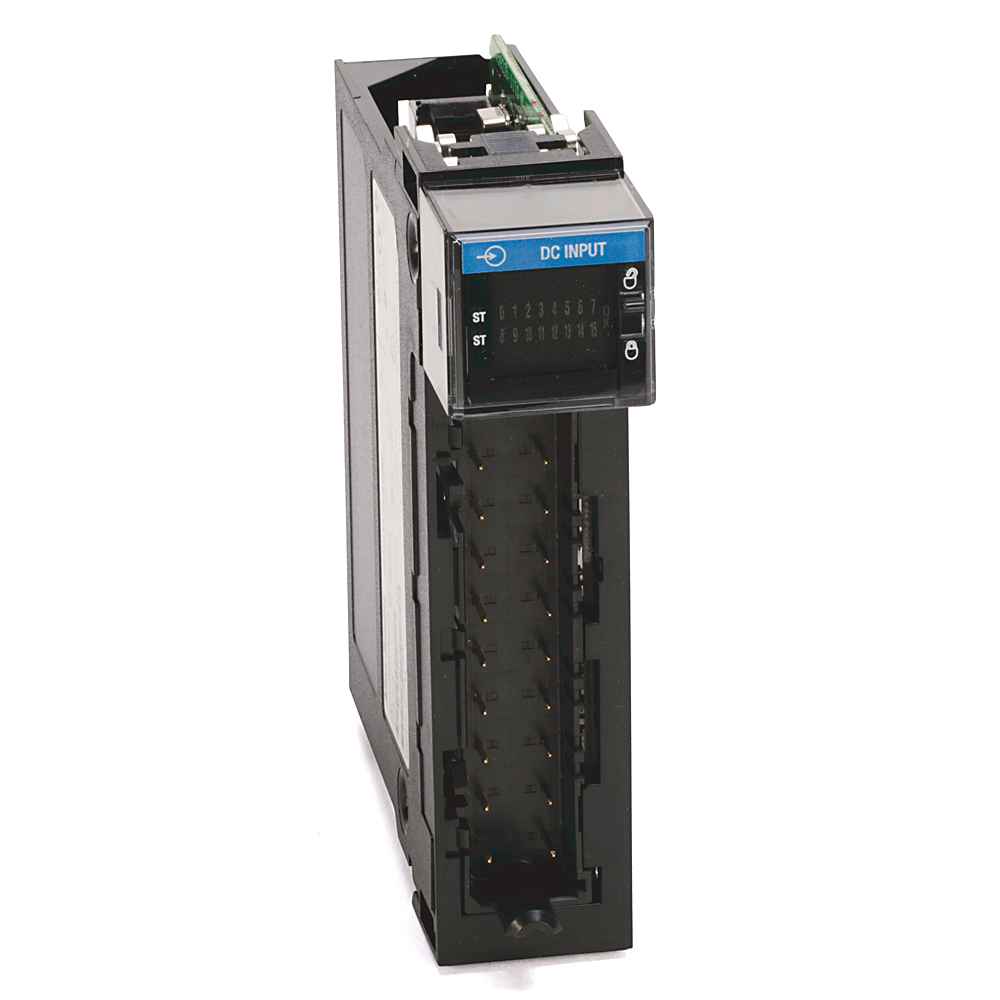

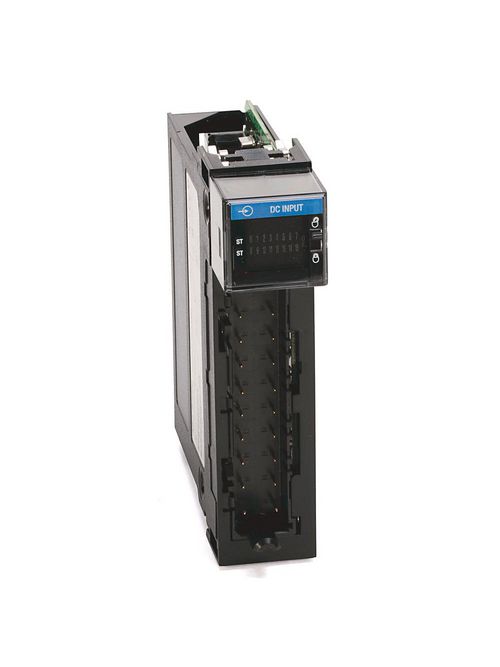

Allen-Bradley 1756-IV16 Controllogix 16-Point 12/24 Volt DC D/I Module
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$462.00/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen Bradley / Rockwell
Mfg Catalog # 1756-IV16
Codale Part # 484470

Specifications

  • Product Type: I/O Modules
  • Sub Brand: ControlLogix
  • Type: Digital Input
  • Special Features: Current Sourcing Inputs
  • Mounting: Chassis
  • Enclosure: None (open-style)
  • Input Signal: 10-30 VDC
  • Isolation: 250 V continuous between groups of 8 inputs
  • Display: Input and Communication Status, Module Health
  • Operating Temperature: 0...60 °C (32...140 °F)
  • Removable Terminal Block: 1756-TBNH or 1756-TBSH

I/O Modules

  • Digital DC Input Modules (Please select number of Removable terminal Blocks as addded in the list.): 10-30 VDC Sourcing Input 16 Pts (20 Pin)

Overview

UPC 61259826434
Codale Part No. 484470
Product Long Description Input Module, ControlLogix, DC Digital, 16 Point, 10-30VDC, Current Sourcing
Type Digital Input
Sub Brand ControlLogix
Mounting Chassis
Enclosure Specification None (open-style)
Operating Temperature 0...60 °C (32...140 °F)
Display Type Input and Communication Status, Module Health
Input Signal 10-30 VDC
Isolation 250 V continuous between groups of 8 inputs
Controller 5570 Standard and Safety
Item Long Description ControlLogix 16 Pt 12/24V DC D/I Module
MDM Pkg GTiN 00612598264346
Operating Temperature 0 To 60 C
Type Digital Input
Mounting Type Chassis
Input Voltage 10-30 V
Family Brand Name Allen Bradley
Number of Channels 16
Tc Connection Screw/Spring Clamp
Response Time 0.28 - 19 Millisecond
Blade Dimensions 38.1 mm W x 111.25 mm D x 300 mm H
Sub Brand ControlLogix
Voltage 10-30 VDC Supply
Standard CE,CSA,KC,MARINE,NRTL,RCM,UL
Display Type Input And Communication Status, Module Health
