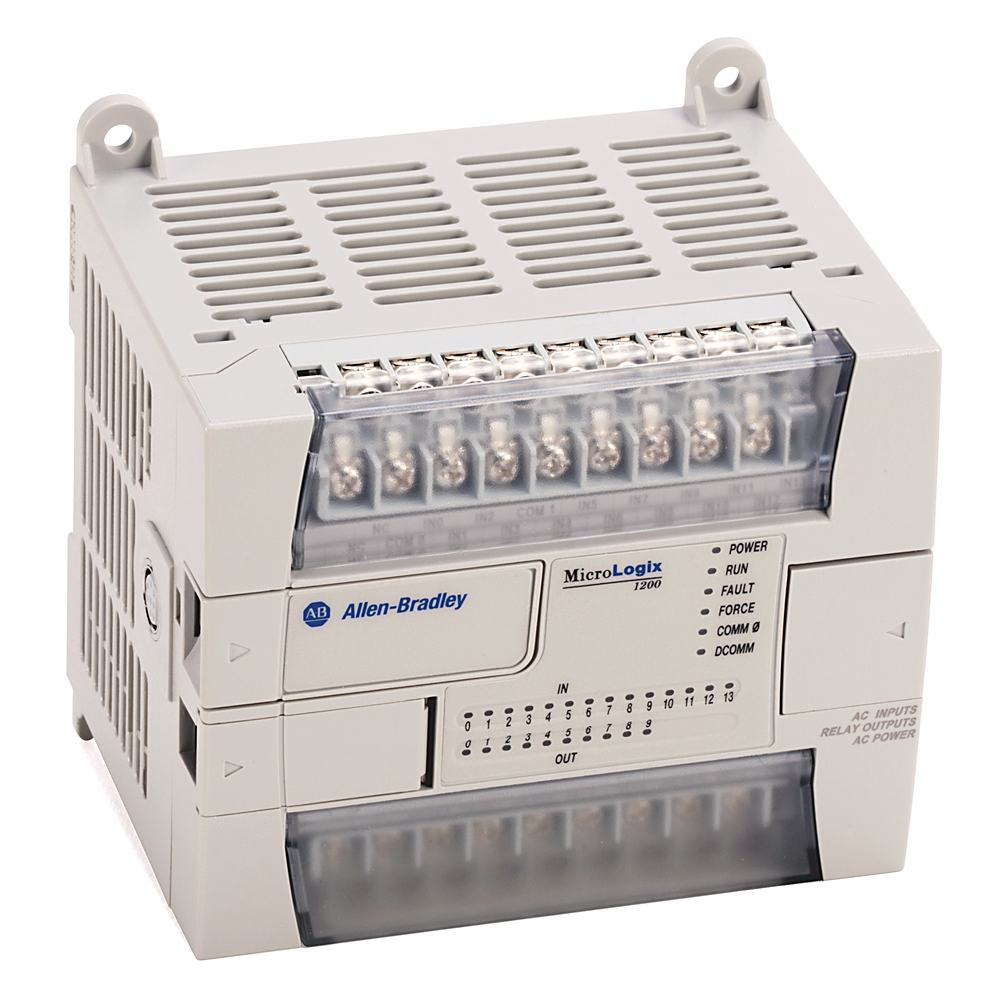

A-B 1762-L24BXB MICROLOGIX 1200 WITH 14 24VDC INPUTS & 5 10 RELAY OUTPUTS 24VDC LINE POWER
$616.92/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen Bradley / Rockwell
Mfg Catalog # 1762-L24BXB
Codale Part # 446413
A-B 1762-L24BXB MICROLOGIX 1200 WITH 14 24VDC INPUTS & 5 10 RELAY OUTPUTS 24VDC LINE POWER

Overview

UPC 61259827930
Catalog Description MicroLogix 1200, 24V dc power, (10) standard 24V dc and (4) fast 24V dc digital inputs, (5) relay outputs, (4) standard 24V dc FET outputs, (1) fast 24V dc FET output
Codale Part No. 446413
Product Long Description MicroLogix 1200, 24V dc power, (10) standard 24V dc and (4) fast 24V dc digital inputs, (5) relay outputs, (4) standard 24V dc FEToutputs, (1) fast 24V dc FET output
Type Controller
Sub Brand MicroLogix 1200
Mounting DIN Rail, Panel Mount
Width 110
Enclosure Specification IP20
Height 90
Operating Temperature 0... 55 °C (32...131 °F)
Depth 87
Display Type No
Power Supply 24V DC
Number of Channels 14 I/P, 10 O/P
Interface RS-232C Port
Input Signal 24V DC
Communication DF1, DH-485, Modbus RTU, ASCII
Memory 6 KB
Output Signal (5) Relay and (5) 24V DC FET
Product Short Description 1762 MicroLogix 1200 System, MicroLogix 1200, 24V dc power, (10) standard 24V dc and (4) fast 24V dc digital inputs, (5) relay outputs, (4) standard 24V dc FET outputs, (1) fast 24V dc FET output
MDM Item Long Description MicroLogix 1200, 24V
MDM Pkg GTiN 00612598279302
Width 110
Operating Temperature 0 To 55 C
Type 24-Point
Mounting Type DIN Rail, Panel Moun
Depth 87
Standard KCC,CE,C-UL-us CL1DI
Family Brand Name Allen Bradley
Class controller
Number of Channels 14 I/P, 10 O/P
Output 5 relay - 5x24V DC s
Power Supply 24V DC
Memory 6 KB
Output Signal (5) Relay and (5) 24
Enclosure IP20
Sub Brand MicroLogix 1200
