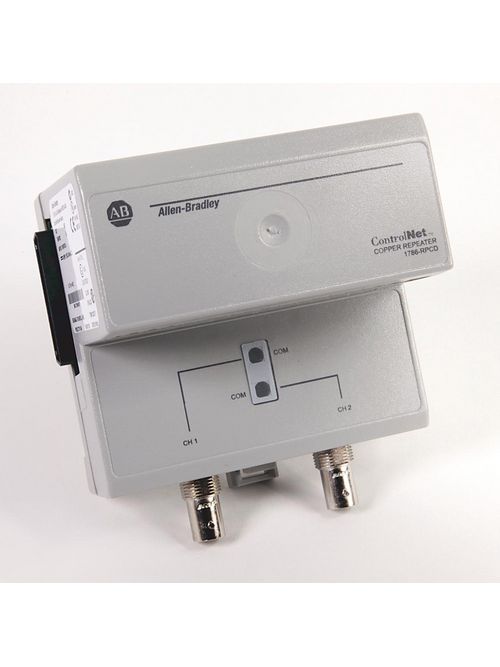

Allen-Bradley 1786-RPCD Controlnet Coaxial Hub Repeater
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,090.00/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen Bradley / Rockwell
Mfg Catalog # 1786-RPCD
Codale Part # 504653

Features

  • Supports ControlNet Media redundancy
  • Supports multiple levels of device and media redundancy
  • Self-contained, panel, or DIN-rail mountable device
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific H1 bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Supports EtherNet/IP Media redundancy
  • Connects and powers as many as 16 field devices, eliminating the need for external power conditioners
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific PA bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, H1 Bus Voltage (A & B bus), H1 Bus Current (A & B bus), and Unit Internal Temperature
  • Supports FDT/DTM Technology, allowing direct access to field device diagnostics and parameters using an FDT frame, such as FactoryTalk® AssetCentre
  • Use with the 1786-RPFS repeater
  • Links a ControlNet™ network to a single H1 segment
  • Use a repeater adapter to supply a maximum of 1.6 A @ 5V DC of current to power the repeater modules
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, PA Bus Voltage (A & B bus), PA Bus Current (A & B bus), and Unit Internal Temperature
  • Links an ControlNet™ network to a single Profibus-PA segment
  • Provides trunk open-circuit and short-circuit monitoring and reroutes trunk connections for extended availability
  • Provides seamless RSLogix 5000™ environment integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Links an EtherNet/IP™ network to a single H1 segment
  • Operates as a true PA master without requiring a DP network, DP master, coupler device, or external power conditioner
  • Protects the integrity of a FOUNDATION Fieldbus H1 or Profibus-PA segment by automatically isolating faulty drops and restoring power when faults are corrected
  • Contains the FOUNDATION Fieldbus Registered FF H1 Stack developed by Rockwell Automation®
  • Provides seamless RSLogix5000™ integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Provides all basic diagnostic information in the input assembly
  • Displays useful field bus diagnostic information via status LEDs
  • Supports Master Device redundancy
  • Links an EtherNet/IP™ network to a single Profibus-PA segment
  • Supports as many as 24 PA field devices
  • Includes 200 micron cable

Specifications

  • Sub Brand: ControlNet
  • Type: Coax Repeater Adaptor Module
  • Controls/Indicators: Power-up Status, Channel 1 & 2 Status
  • Power Supply: 24 V DC Power Supply
  • Form Factor: IP20
  • Mounting: Din Rail
  • Distance Support: Connection via 1 meter Tap

Controlnet Network

  • ControlNet Media: ControlNet Coaxial Repeater Module

Overview

UPC 61259820681
Codale Part No. 504653
Product Long Description Repeater Adaptor, ControlNet, Communication Module, Hub, 24V DC, Coaxial BNC, Dual Connectors, DIN Rail Mounting
Type Coax Repeater Adaptor Module
Sub Brand ControlNet
Mounting Din Rail
Power Supply 24 V DC Power Supply
Item Long Description ControlNet Coaxial Hub Repeater
MDM Pkg GTiN 00612598206810
Type Coax Repeater Adaptor Module
Applications ControlNet
Mounting Type DIN-Rail
Family Brand Name Allen Bradley
Number of Ports 2
Power Supply 24 V DC Power Supply
Sub Brand ControlNet
Standard CE,CSA,GOST,KC,MARINE,RCM,UL
