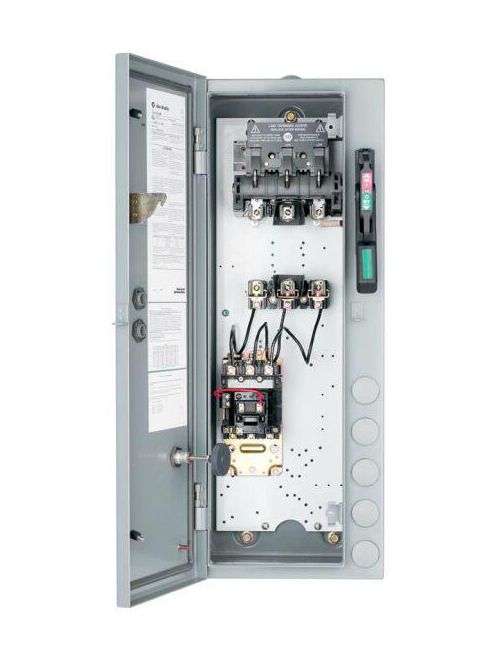

A-B 512-BAB-A2F-4R-6P-24R NEMACombination Starter Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,137.99/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen Bradley / Rockwell
Mfg Catalog # 512-BAB-A2F-4R-6P-24R
Codale Part # 4305271

Features

  • Offers wide-range universal AC/DC electronic coils
  • Offers rugged design
  • Offers starters in stainless steel and cast enclosures rated for gas and dust hazardous locations
  • Rated for indoor and outdoor applications
  • Offers IP-20 finger-safe terminals
  • Includes reduced power consumption
  • Offers snap-together wiring which provides faster and easier wiring of components in the enclosure
  • Provides short circuit protection up to 100 kA with fuses and 65kA at 480V with circuit breaker
  • Includes smaller enclosure in select frame sizes
  • Includes NEMA sizes 0...6
  • Includes metal enclosure with ratings of NEMA 1, 3R, 4/12, 4X
  • Field serviceable

Specifications

  • Size: NEMA 1
  • Continuous Ampere Rating: 27 A

Assembly

  • Factory or User Assembled?: Factory Assembled

Motor Data

  • Line Voltage: 460V 60Hz

Starter Data

  • NEMA Size: NEMA 1
  • Enclosure: Type 1 - Enclosure Code "A"
  • Control Voltage: 120V 60Hz

Disconnect Data

  • Disconnect Type: Fusible
  • Fuse Clips: 30A Class R

Options

  • Overload Relay: E1 Plus Solid State
  • Full Load Amps: 3.2...16
  • Factory Installed Modifications: Transformer, w/2 Prim & 1 Sec Fuse

Important Information

  • Enclosure Size [length x width x depth]: 27 x 10 x 8 in.
  • Continuous VA (Transformer Rating): 80

Overview

UPC 88563023022
Family Brand Name Rockwell Automation
Item Long Description Combination Starter Disconnect, Size 1, 120V 60 Hz, NEMA 1 General Purpose, Fusible, 30 A Class R, E1 Plus 3 PH Ovld Rly, 3 Phase, Xfmr 2Pri & 1 Sec Fuse, Pilot Lights, 440/480V AC 50/60 Hz, SMP1 E1+ MRst Cl20 3.7-12A, E1 Plus Solid State, No Fuse Cover, No Auxililiary Contacts, Standard Capacity, 80. VA, No Next Day Ship, Ungrounded Transformer, None, Incandescent, Incandescent, Red Lens Pos 1, No Pilot Light Lens Pos. 2, No Pilot Light Lens Pos. 3, No Pilot Light Lens Pos. 3, No Pilot Light Lens Pos. 4, No Pilot Light Lens Pos. 4, No PilotLight Lens Pos. 5, No Pilot Light Lens Pos. 5
Control Voltage 120 V
NEMA 1
Disconnect Type Fusible
Amperage 27 Amp
