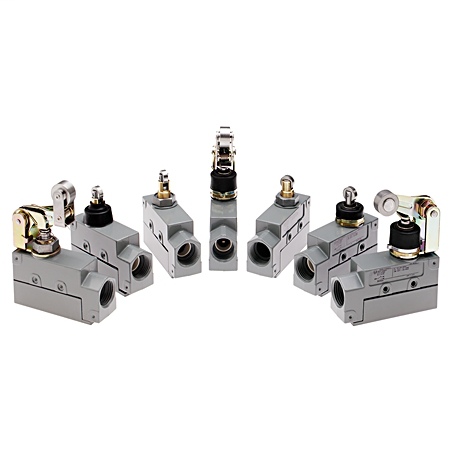

Allen-Bradley 802B-PSABXSX Precision Top Push Side Mount Standard No Connection Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer Allen Bradley / Rockwell
Mfg Catalog # 802B-PSABXSX
Codale Part # 462356


  • Compact size
  • Rugged die-cast housing
  • Industry standard dimensions


Limit Switch Data

  • Switch Type: Precision
  • Head Configuration: Top Push
  • Mounting Style: Side Mount
  • Output Type: Standard
  • LED Indicator: No
  • Torque to Operate Contacts (Max.): 3.43N (0.77lb)
  • Travel to Operate Contacts (Nominal): 0.4mm (0.016in)
  • Maximum Travel: 5.9mm (0.232in)
  • Travel to Reset Contacts (Max.): 0.05mm (0.002in)
  • Connection Type: No Connection


UPC 61132052026
Codale Part No. 462356
Product Long Description Compact Limit Switch, 802B Precision, Top Push Rod, 1 Circuit, Conduit Entry, Side, Standard Contacts, 1 Normally Open Contact, 1 NormallyClosed Contact, Push Accuation, Metal, Full Switch (Head & Body), -10C, 80C, 0.55 lbs, Spring Return, 1/2" NPT Thread
Connection Type No Connection
Item Long Description 802B Precision Compact Limit Switch
MDM Pkg GTiN 00611320520262
Size 802B Precision
Operating Temperature -10 C
Type Compact, Precision
Applications Full Switch (Head & Body)
Mounting Type Side
Connection Type No Connection
Family Brand Name Allen Bradley
Tc Connection Not Applicable,Not Applicable,Not Applicable
Actuator Top Push Rod
Contact Configuration 1 NC, 1 NO
Contact Rating Not Applicable
Number of Poles 1 Pole
Enclosure Metal
Material Metal
Temperature Rating -10 to 80 C
Number of Circuits 1
Action Snap Acting, Standard Contacts
