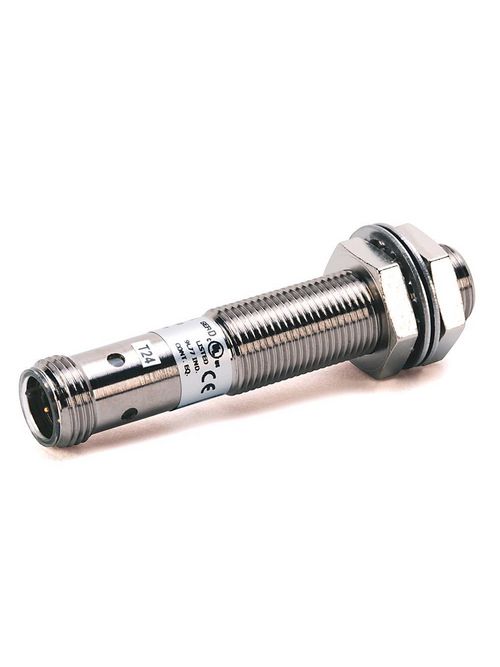

Allen-Bradley 872C-M8NP18-D4 Inductive Proximity Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$99.21/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen Bradley / Rockwell
Mfg Catalog # 872C-M8NP18-D4
Codale Part # 458950

Features

  • Applications include:
  • Provides short circuit, overload, transient noise, false pulse, and reverse polarity protection
  • Includes highly-visible status indicator
  • Includes threaded, nickel-plated brass barrels

Specifications

  • Application: 3-Wire DC Extended Range Standard Barrel
  • Sensing Distance: 8mm
  • Special Features: Standard
  • Output: N.O., Source (PNP)
  • Connection: Micro Quick-Disconnect (DC)
  • Voltage Rating: 10 - 30V DC

Proximity Sensor Data

  • Proximity Sensor Type: 3-Wire DC Extended Range Standard Barrel
  • Barrel Diameter: 18mm
  • Nominal Sensing Distance: 8mm
  • Shielding: Shielded
  • Barrel Type: Standard
  • Output Configuration: N.O., Source (PNP)
  • Connection Type: Micro Quick-Disconnect (DC)

Accessory Items

  • Connection Media: DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m

Accessories

  • 889D-F4AC-5

Overview

UPC 61132015787
Codale Part No. 458950
Product Long Description Inductive Prox Sensor, Nickel Brass Inductive Sensor, 18 mm BarrelDiameter, DC Range Shielded Extended, 8 mm Sensing Distance, Normally OpenSourcing, Standard Barrel, 4 Pin DC Micro QD, 10-30V DC
Application 3-Wire DC Extended Range Standard Barrel
Voltage Rating 10 - 30V DC
Connection Type Micro Quick-Disconnect (DC)
Output Type N.O., Source (PNP)
Barrel Type Standard
Sensing Distance 8mm
Item Long Description 18 mm Barrel Inductive Prox Sensor
Size 18 mm Barrel Diameter
Voltage 30 Volt
Type Cylinder, Screw-Thread, Metallic Target, Barrel
Barrel Type Standard
Material Metal
Applications DC Range Shielded Extended
Mounting Type Concise
Connection Type Plug-in
Barrel Diameter 18 mm
Family Brand Name Allen Bradley
Tc Connection 4 Pin DC Micro QD
Output Normally Open
Blade Dimensions 18 mm dia x 64 mm L
Operating Frequency 300 Hz
Sensing Range 8 mm
Maximum Load Current 400 mA
Standard C-TICK,CCC,CE,CUL,KC,RCM,UL
