UPC | 61132006295 |

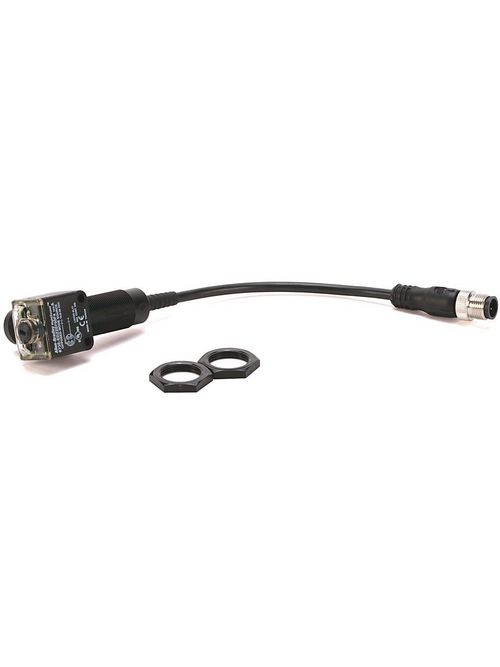

Catalog Description | RightSound Ultrasonic Sensor,Emitter,4 Pin Micro QD on Pigtail |
Codale Part No. | 489121 |
Product Long Description | RightSound Ultrasonic Sensor, Emitter, 4 Pin Micro QD on Pigtail |
Size | 18mm |
Connection Type | Pigtail w/Micro QD (DC) |
Enclosure Specification | Plastic |
Output Type | NPN/PNP (NO or NC) |
Sensing Distance | 50mm to 750mm |
Sensing Range | 50mm to 750mm |
Sensing Mode | Transmitted Beam Emitter |
Product Short Description | Proximity Sensor, RightSound 18mm Right Angle, NPN/PNP (NO or NC), 18mm Diameter, 50mm to 750mm Sensing Distance, Pigtail w/Micro QD (DC) |
Item Long Description | RightSound Ultrasonic Sensor |
MDM Pkg GTiN | 00611320062953 |
Size | 18 mm |
Type | RightSound Ultrasonic Sensor,RightSound Ultrasonic Sensor |
Material | Plastic |
Connection Type | Cable |
Barrel Diameter | 18 mm |
Temperature Rating | -25 to 70 C |
Family Brand Name | Allen Bradley |
Termination Type | Pigtail W/Micro QD ( |
Tc Connection | 4 Pin Micro QD on Pi |
Blade Dimensions | 35.1 mm L x 27 mm W |
Operating Frequency | 240 Hz |
Sensing Range | 50-750 mm |
Sensor Type | Emitter |
Sub Brand | RightSound |
Voltage | 10.8-30 VDC |
Standard | CCC,CE,CUL,UL |
