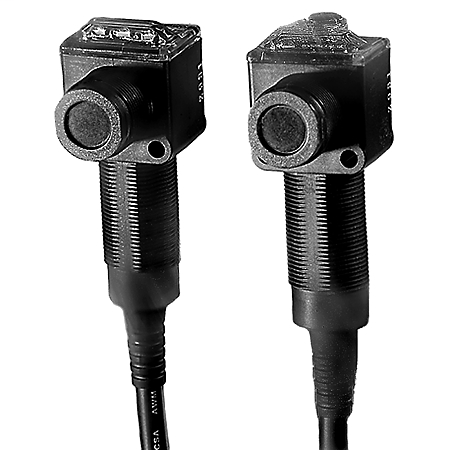

Allen-Bradley 873E-RDTT0750F4 Rightsound Ultrasonic Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$291.55/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen Bradley / Rockwell
Mfg Catalog # 873E-RDTT0750F4
Codale Part # 489122

Features

  • Highly visible 360° status indicators
  • 1200 psi washdown, NEMA 4X, 6P and IP67 water ingress standards
  • Short circuit, overload, false pulse, transient noise and reverse polarity protection
  • NPN (sinking) and PNP (sourcing) outputs
  • Output logic switchable via polarity of receiver power wiring
  • Highly immune to ambient sonic and electrical noise
  • Applications include:

Specifications

  • Model: Bulletin 873E RightSound 18mm Right Angle
  • Size: 18mm
  • Sensing Distance: 50mm to 750mm
  • Output: NPN/PNP (NO or NC)
  • Connection: Pigtail w/Micro QD (DC)

Proximity Sensor Data

  • Family Style: Bulletin 873E RightSound 18mm Right Angle
  • Sensing Mode: Transmitted Beam Receiver
  • Barrel Diameter: 18mm
  • Sensing Range: 50mm to 750mm
  • Output Configuration: NPN/PNP (NO or NC)
  • Termination Type: Pigtail w/Micro QD (DC)

Accessory Items

  • Connection Media: DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m

Additional Details

  • Enclosure: Plastic

Accessories

  • 889D-F4AC-5

Overview

UPC 61132006297
Codale Part No. 489122
Product Long Description RightSound Ultrasonic Sensor, Receiver, 4 Pin Micro QD on Pigtail
Size 18mm
Connection Type Pigtail w/Micro QD (DC)
Enclosure Specification Plastic
Output Type NPN/PNP (NO or NC)
Sensing Distance 50mm to 750mm
Sensing Range 50mm to 750mm
Sensing Mode Transmitted Beam Receiver
Item Long Description RightSound Ultrasonic Sensor, Receiver, 4 Pin Micro QD on Pigtail
MDM Pkg GTiN 00611320062977
Size 18 mm
Type Transmitted Beam Receiver, Right Angle
Connection Type 4-Pin Micro QD on Pigtail, 4-Pin DC Micro
Barrel Diameter 18 mm
Family Brand Name Allen Bradley
Termination Type Pigtail W/Micro QD (DC)
Tc Connection 4-Pin Micro QD on Pigtail
Sensing Range 50-750 mm
Sensor Type Receiver
Material Noryl
Temperature Rating -25 to 70 C
Output NPN/PNP (NO or NC)
Blade Dimensions 27 mm W x 35.1 mm D x 69 mm H
Environmental Conditions 0 - 95% Non-Condensing Humidity
Operating Frequency 200/240 kHz
Maximum Load Current 100 mA
Sub Brand RightSound
Standard CCC,CE,CUL,KC,UL
