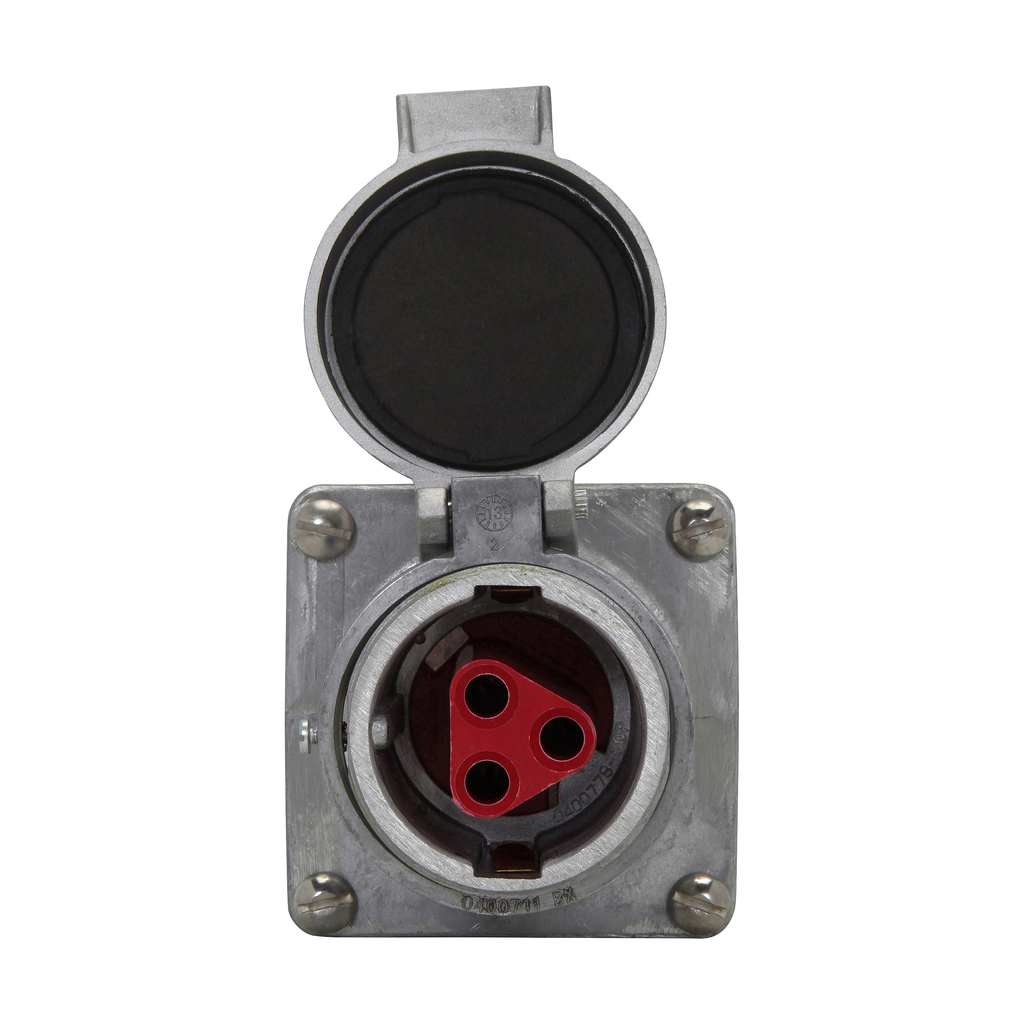

Crouse-Hinds Series AR341 30 Amp 4-Pole 4-Wire Spring Door Receptacle Housing
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$696.15/ea
Usually ships within 23 to 37 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Crouse-Hinds
Mfg Catalog # AR341
Codale Part # 13043

Specifications

  • Grounding Style: Style 1
  • Configuration: Four-wire, four-pole
  • NEMA Rating: 4
  • Frequency Rating: 50-400 Hz
  • Area Classification: Ordinary/Non-Hazardous Locations
  • Material: Copper-free aluminum
  • Receptacle Style: Spring door
  • Voltage Rating: 600 Vac/250 Vdc
  • Standards Type: NEC/CEC
  • Amperage Rating: 30A

General

  • UPC: 782274059808
  • Product Length/Depth: 2.88 IN
  • Product Height: 3.38 IN
  • Product Width: 3.38 IN
  • Product Weight: 1.45 LB

Overview

Codale Part No. 13043
Material Copper-free aluminum
Voltage Rating 600 Vac, 250 Vdc
Length 2.875 IN
Amperage Rating 30A
Width 3.375 IN
Height 3.375 IN
Weight 1.45 LB
Product UPC 78227405980
Length 2.88 Inch
Width 3.375 in
Size 3-3/8 In Length X 3-3/8 Width X 2-7/8 Height
Voltage 250 Volt
Type Pin and Sleeve
Insulation Type Fiberglass-Reinforced Polyester
Material Aluminum
Applications Male Plug/Receptacle
Height 3.375 in
Weight 1.45 lb
Wire Size 10-6 AWG (Building), 10-8 AWG (Extra Flex)
Frequency 50-400 Hz
Family Brand Name Crouse-Hinds Series
Amperage 30 Amp
Sub Brand Arktite
