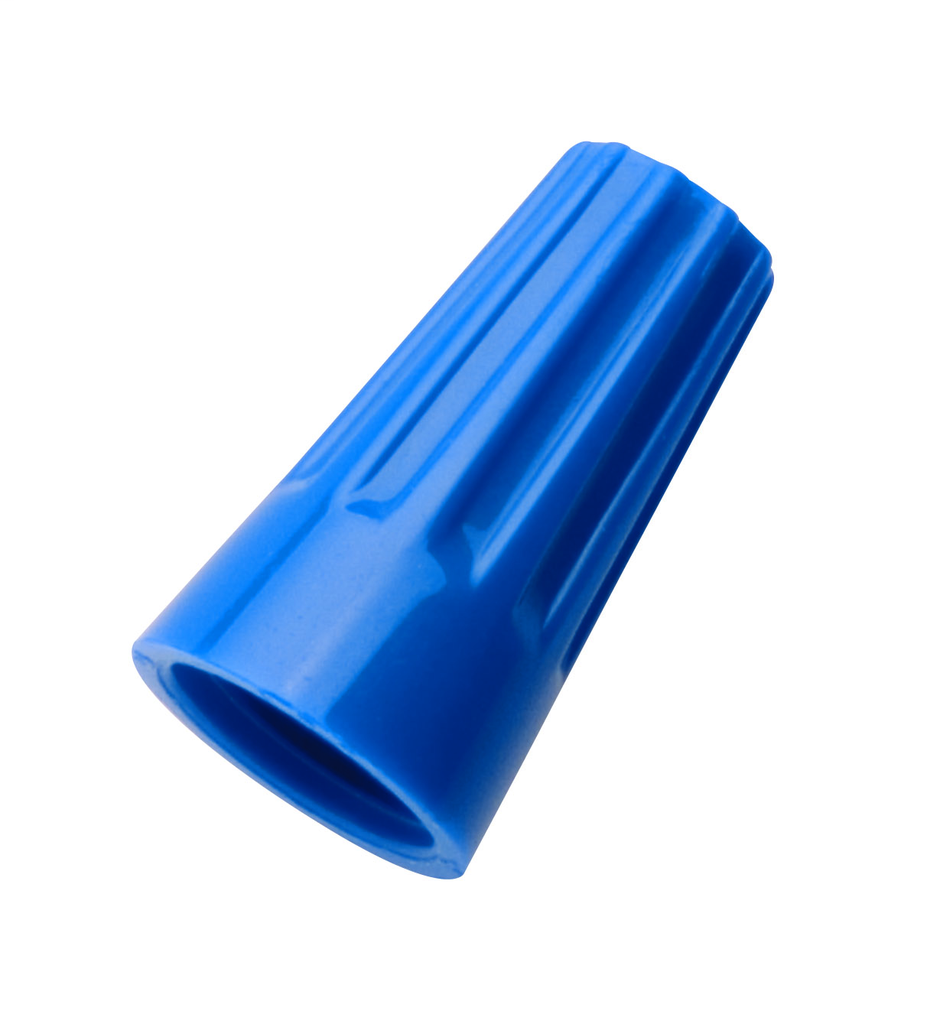

IDEAL 30-072 SIZE 72B BLUE WIRENUT CONNECTOR (100 BOX)
$92.99/m (1000 ea)
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 30-072
Codale Part # 133293
IDEAL 30-072 SIZE 72B BLUE WIRENUT CONNECTOR (100 BOX)

Overview

UPC 78325030072
Product Description 22-14AWG BLUE WIRENUT CONNECTOR (100 BOX)
Catalog Description IDEAL, Wire Connector, Wire-Nut, Twist-On, Number Of Conductors: 1 to 5, Conductor Range: 22 - 14 AWG, Min 2-16 MAX 3-16, Color: Blue, Material: Flame-retardant polypropelene, Voltage Rating: 300 V, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F), Model Number: 72B, Flammability Rating: UL 94V-2
Codale Part No. 133293
Product Long Description The connector that started it all, an American Classic.
Product Short Description Wire-Nut® Wire Connector, Model 72B® Blue, Box of 100
MDM Item Long Description The connector that s
MDM Pkg GTiN 00783250300723
Length 0.7 in
Finish Zinc Plated
Color Blue
Type Reusable
Diameter 0.39 in
Material Polypropylene Shell
Number of Conductors 3
Conductor Size 22-16 AWG
Applications For Insulating or Joining 2 or more Conductors
Temperature Rating 105 C
Family Brand Name Ideal
Environmental Conditions 105 C
Sub Brand Wire-Nut
MDM DDS PROP65 WARNING WARNING: Cancer -  www.P65Warnings.ca.gov.
